SWAGELESS CONE SHROUD | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F | R | W | M | ART. NO. | WIRE 1x19 | B | D | T | L | KW 1 | KW 2 | BL/KG | KG/100 | BW BP | NAVTEC BP |
| • | SC867504SH | 4 - 5/32" | 15,4 | 7,5 | 7,5 | 85 | 6 | 12 | 2200 | 4,9 | 616105 | - | |||
| • | SC860905SH | 5 - 3/16" | 18,5 | 9 | 9 | 100 | 7 | 14 | 2800 | 8 | 616105 | - | |||
| • | SC861206SH | 6 | 21,5 | 12,58 | 12,58 | 126 | 11 | 17 | 5000 | 17 | - | N841-M06 | |||
| • | SC861263SH | 1/4" | 21,5 | 12,58 | 12,58 | 126 | 11 | 17 | 5000 | 17 | - | N841-M06 | |||
| • | SC861407SH | 7 - 9/32" | 28 | 14,2 | 14,2 | 138 | 12 | 19 | 6000 | 26,3 | - | N841-M07 | |||
| • | SC861608SH | 8 - 5/16" | 29 | 16 | 16 | 168 | 14 | 22 | 8000 | 38,8 | - | N841-M08 | |||
| • | SC861895SH | 3/8" | 32 | 17,8 | 17,8 | 203 | 15 | 27 | 11000 | 61,3 | - | N841-M10 | |||
| • | SC861810SH | 10 | 32 | 17,8 | 17,8 | 203 | 15 | 27 | 11000 | 61,3 | - | N841-M10 |

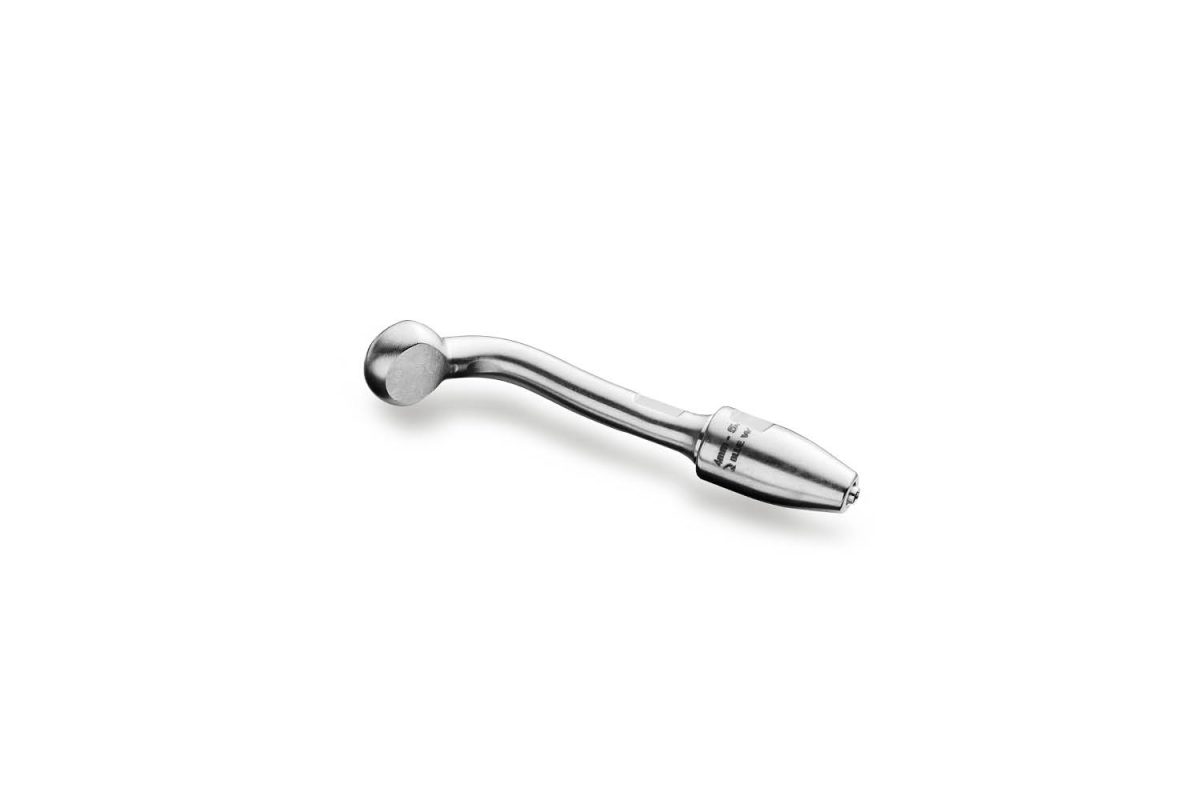

Swageless cone shroud
Polished stainless steel – AISI 316L

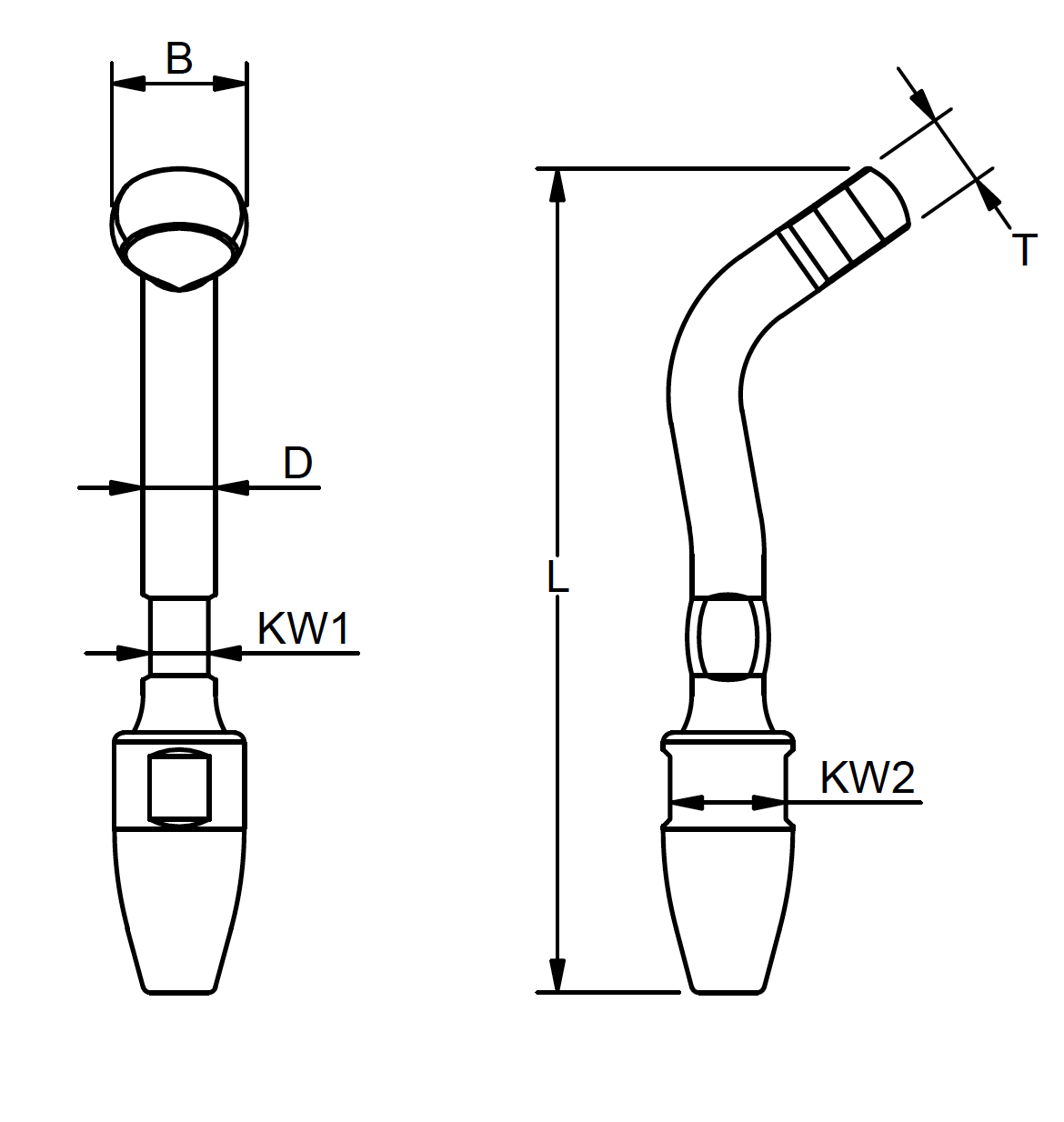

Technical drawing
Datatable
