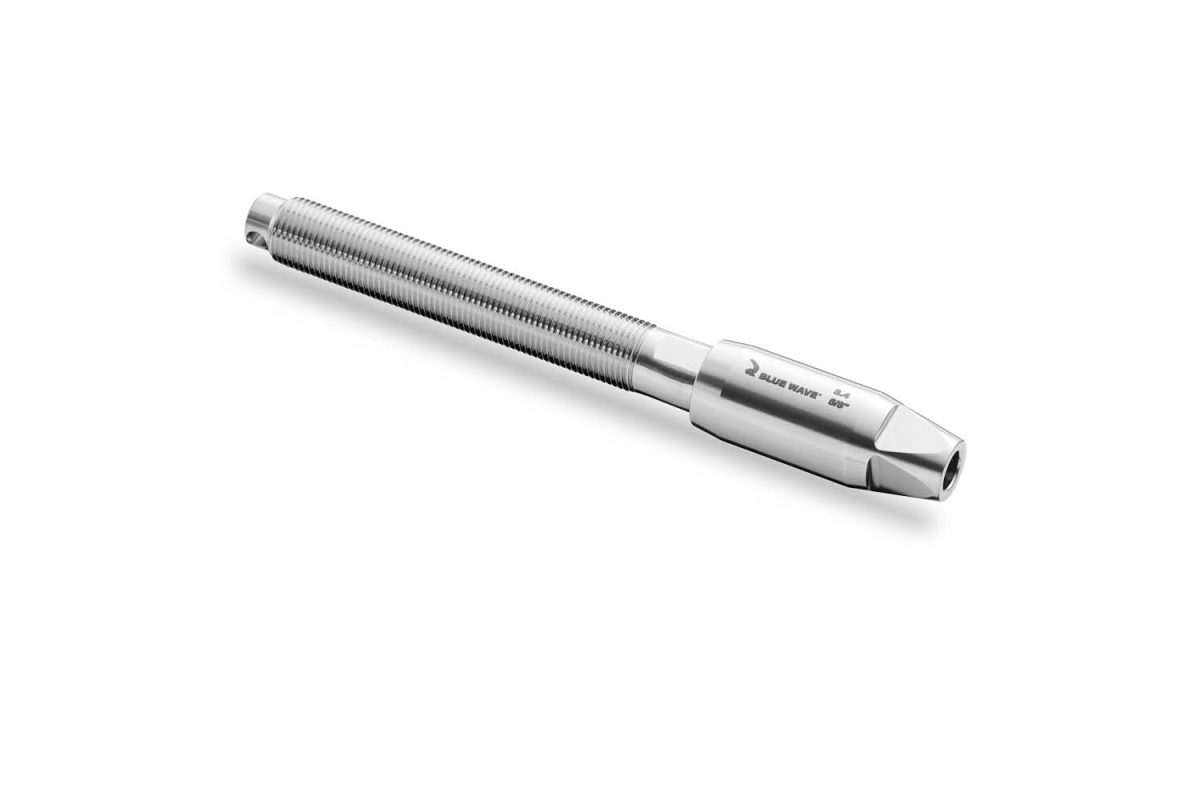

STUD TERMINAL FOR ROD | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F | ROD | W | M | ART. NO. RIGHT | ART. NO. LEFT | ROD Ø | DASH | G1 | G2 | D | KW | KW2 | L1 | L2 | KG/100 | PACK |
| • | SR516003M | SL516003M | 3 | 1 | 5/16'' | 5/16'' | 2,2 | 6 | 10 | 84 | 57 | 4,5 | BULK | |||
| • | SR516004M | SL516004M | 4 | 3 | 5/16'' | 5/16'' | 2,2 | 6 | 10 | 84 | 57 | 4,5 | BULK | |||
| • | SR038004M | SL038004M | 4 | 3 | 3/8'' | 3/8'' | 2,2 | 7 | 10,5 | 93 | 63 | 8,6 | BULK | |||
| • | SR038044M | SL038044M | 4,6 | 4 | 3/8'' | 3/8'' | 2,8 | 7 | 10,5 | 92 | 62 | 7,7 | BULK | |||
| • | SR038005M | SL038005M | 5 | 6 | 3/8'' | 3/8'' | 2,2 | 7 | 10,5 | 93 | 63 | 8,6 | BULK | |||
| • | SR716005M | SL716005M | 5 | 6 | 7/16'' | 7/16'' | 2,2 | 8 | 11 | 103 | 70 | 9,6 | BULK | |||
| • | SR716057M | SL716057M | 5,7 | 8 | 7/16'' | 7/16'' | 2,2 | 8 | 11 | 103 | 70 | 9,6 | BULK | |||
| • | SR012057M | SL012057M | 5,7 | 8 | 1/2'' | 1/2'' | 2,8 | 10 | 11,5 | 119 | 80 | 14,3 | BULK | |||
| • | SR716006M | SL716006M | 6 | 9 | 7/16'' | 7/16'' | 2,2 | 8 | 11 | 103 | 70 | 9,6 | BULK | |||
| • | SR012006M | SL012006M | 6 | 9 | 1/2'' | 1/2'' | 2,8 | 10 | 11,5 | 119 | 80 | 14,3 | BULK | |||
| • | SR012064M | SL012064M | 6,4 | 10 | 1/2'' | 1/2'' | 2,8 | 10 | 11,5 | 119 | 80 | 14,3 | BULK | |||
| • | SR012071M | SL012071M | 7,1 | 12 | 1/2'' | 1/2'' | 2,8 | 10 | 11,5 | 119 | 80 | 14,2 | BULK | |||
| • | SR058071M | SL058071M | 7,1 | 12 | 5/8'' | 5/8'' | 3,5 | 13 | 14,5 | 146 | 100 | 27,8 | BULK | |||
| • | SR058075M | SL058075M | 7,5 | 15 | 5/8'' | 5/8'' | 3,5 | 13 | 14,5 | 146 | 100 | 27,8 | BULK | |||
| • | SR058008M | SL058008M | 8 | 16 | 5/8'' | 5/8'' | 3,5 | 13 | 14,5 | 146 | 100 | 28 | BULK | |||
| • | SR058084M | SL058084M | 8,4 | 17 | 5/8'' | 5/8'' | 3,5 | 13 | 14,5 | 146 | 100 | 27,7 | BULK | |||
| • | SR034084M | SL034084M | 8,4 | 17 | 3/4'' | 5/8'' | 3,5 | 17 | 16,5 | 171 | 120 | 43,1 | BULK | |||
| • | SR343484M | SL343484M | 8,4 | 17 | 3/4'' | 3/4'' | 3,5 | 17 | 16,5 | 176 | 120 | 46,3 | BULK | |||
| • | SR034095M | SL034095M | 9,5 | 22 | 3/4'' | 3/4'' | 3,5 | 17 | 16,5 | 176 | 120 | 46,1 | BULK | |||
| • | SR078111M | SL078111M | 11,1 | 30 | 7/8'' | 7/8'' | 3,5 | 19 | 19 | 191 | 140 | 69 | BULK | |||
| • | SR100127M | SL100127M | 12,7 | 40 | 1'' | 1'' | 3,5 | 22 | 22,5 | 241 | 170 | 114,3 | BULK | |||
| • | SR118143M | SL118143M | 14,3 | 48 | 1 1/8'' | 1 1/8'' | 5,5 | 25 | 26 | 260 | 180 | 183,8 | BULK | |||
| • | SR138168M | SL138168M | 16,8 | 60 | 1 3/8'' | 1 3/8'' | 6,5 | 30 | 30 | 293 | 203 | 277,8 | BULK |
The user is responsible for choosing the proper rod diameter and for correct assembly
