SMALL THREAD TERMINALS | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F | R | W | M | ART. NO. RIGHT | ART. NO. LEFT | G | WIRE | D1 | D2 | L1 | L2 | L3 | BL/KG | KG/100 |
| • | A180503 | A190503 | M5 | 3 - 1/8" | 3,5 | 5,5 | 60 | 25 | 30 | 360 | 0,8 | |||
| • | A180604 | A190604 | M6 | 4 - 5/32" | 4,4 | 6,35 | 65 | 25 | 35 | 640 | 1,2 | |||
| • | A180605 | A190605 | M6 | 5 - 3/16" | 5,3 | 7,5 | 73 | 30 | 35 | 1000 | 1,7 | |||
| • | A180806 | A190806 | M8 | 6 | 6,5 | 9 | 88 | 40 | 40 | 1400 | 2,6 | |||
| • | A181008 | A191008 | M10 | 8 - 5/16" | 8,4 | 12,58 | 103 | 50 | 45 | 2300 | 5,8 | |||
| • | A181210 | A191210 | M12 | 10 | 10,5 | 16 | 118 | 60 | 50 | 3600 | 10 |
Small thread terminals
Polished stainless steel – AISI 316

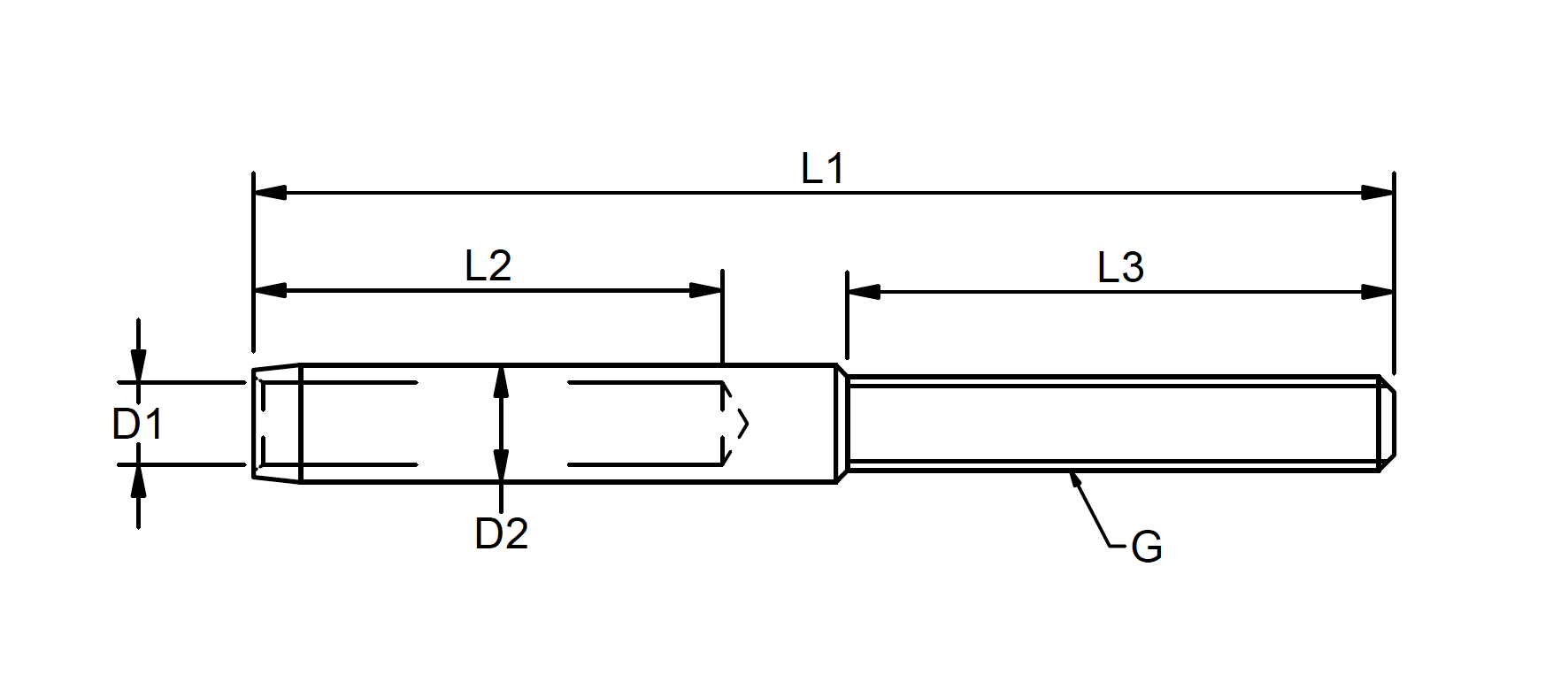

Technical drawing
Datatable
Slide to see table
Small thread terminals for lighter architectural fixing of wires. The focus of the design is the size; overall dimensions have thus been reduced to a minimum. The fittings are suitable for hand crimping or roll swaging using a standard machine and smaller die.
