SINGLE SHANK BALL TERMINAL | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|

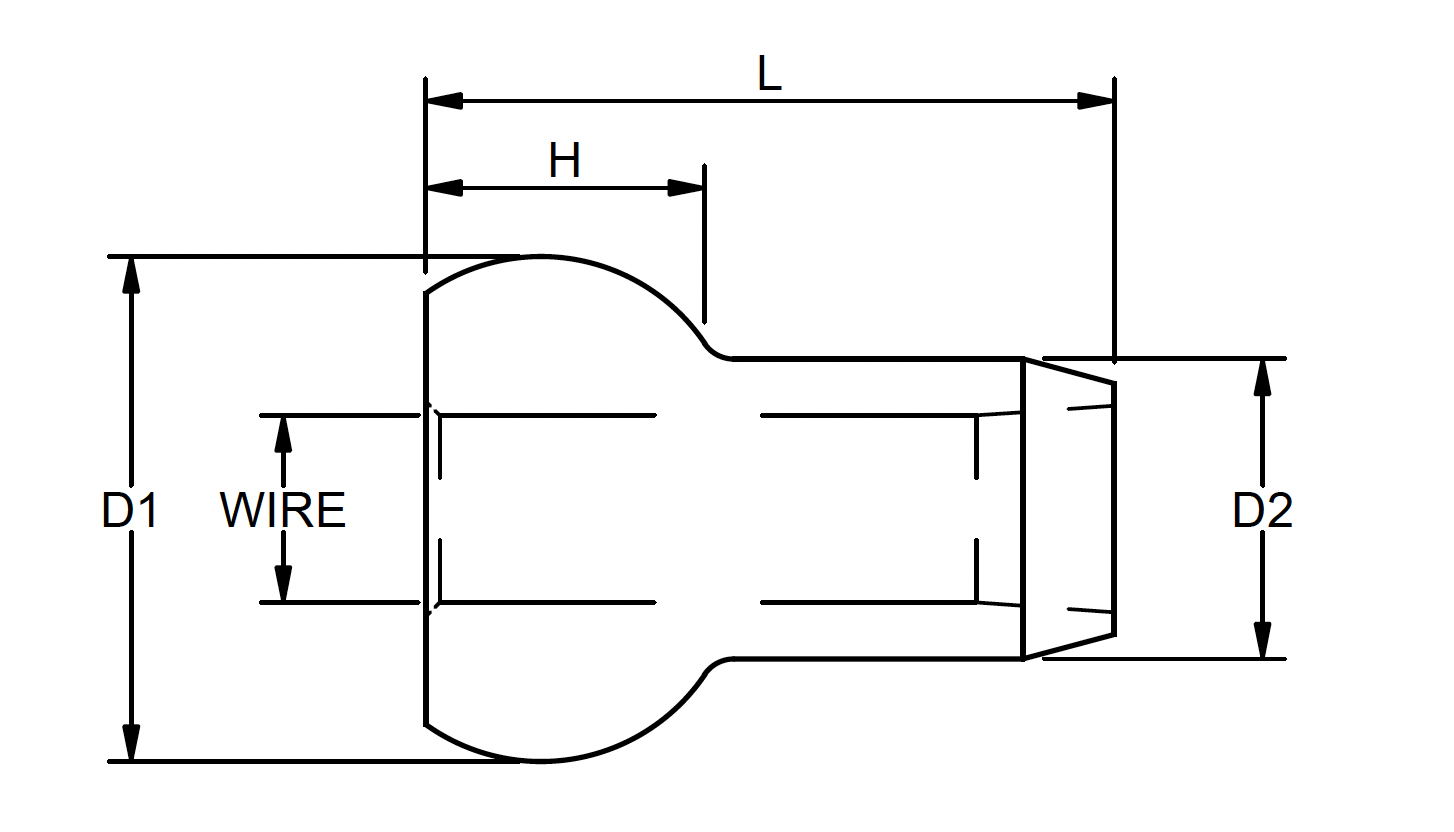

| F | ROD | W | M | ART. NO. | WIRE | D1 | D2 | L | H | KG/100 |
| • | SSB332 | 3/32'' | 7,15 | 4,25 | 9,75 | 3,95 | 0,1 | |||
| • | SSB018 | 1/8'' | 8,9 | 5,65 | 12,7 | 4,8 | 0,3 | |||
| • | SSB532 | 5/32'' | 10,75 | 6,6 | 15,65 | 5,8 | 0,4 | |||
| • | SSB316 | 3/16'' | 12,5 | 7,55 | 18,5 | 6,7 | 0,7 | |||
| • | SSB025 | 2,5 | 7,15 | 4,25 | 9,75 | 3,95 | 0,1 | |||
| • | SSB003 | 3 | 8,9 | 5,65 | 12,7 | 4,8 | 0,3 | |||
| • | SSB004 | 4 | 10,75 | 6,6 | 15,65 | 5,8 | 0,4 | |||
| • | SSB005 | 5 | 12,5 | 7,55 | 18,5 | 6,7 | 0,6 |

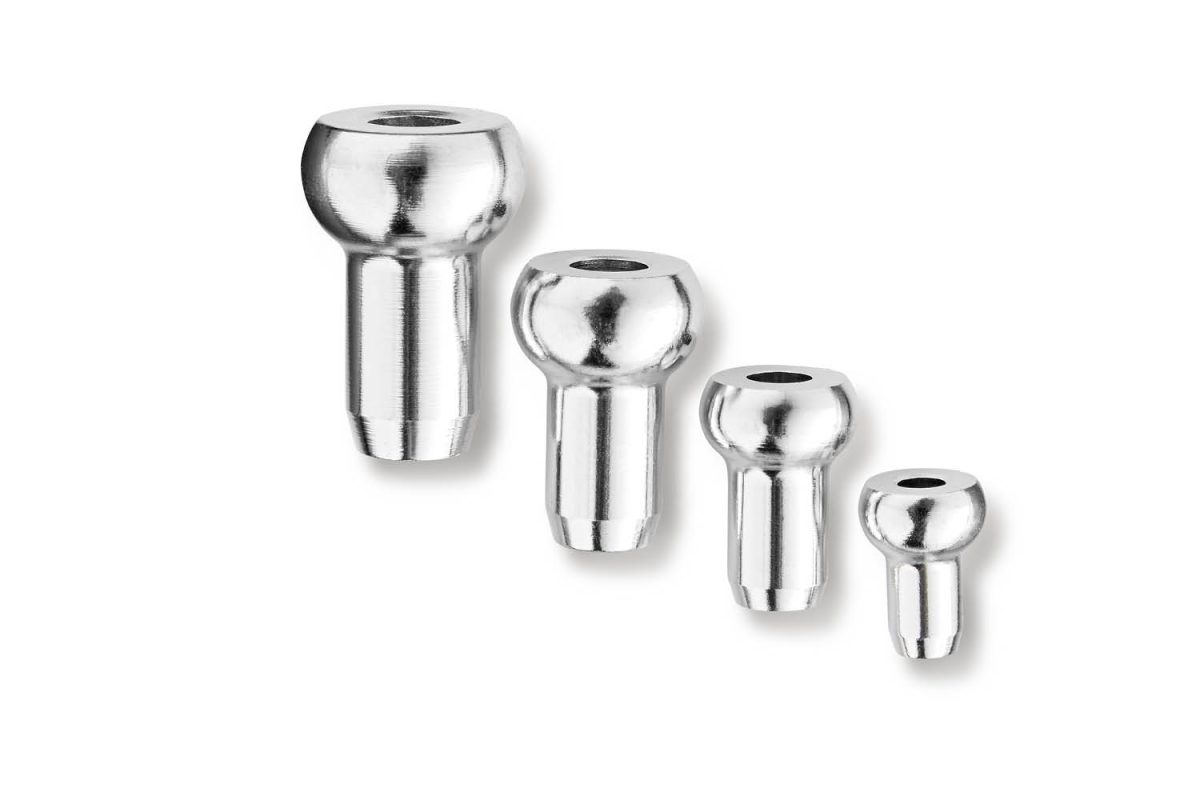

We offer a series of single shank balls in AISI 316L from 2,5mm – 5mm cable. The products are in accordance with the standards of the MS20664.
Single shank ball series are cable end fittings that have many uses and applications, in the maritime industry also identified as Starboat terminals.
