SINGLE GATE EYE TO EYE FITTING | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F | W | M | ART. NO. | G | D1 | D2 | L1 | L2 | L3 | BL/KG | KG/100 | PACK |
| • | EE08A | 5/16" | 21 | 14 | 52 | 14 | 3/4" - 1" | 1200 | 12,1 | 10 |

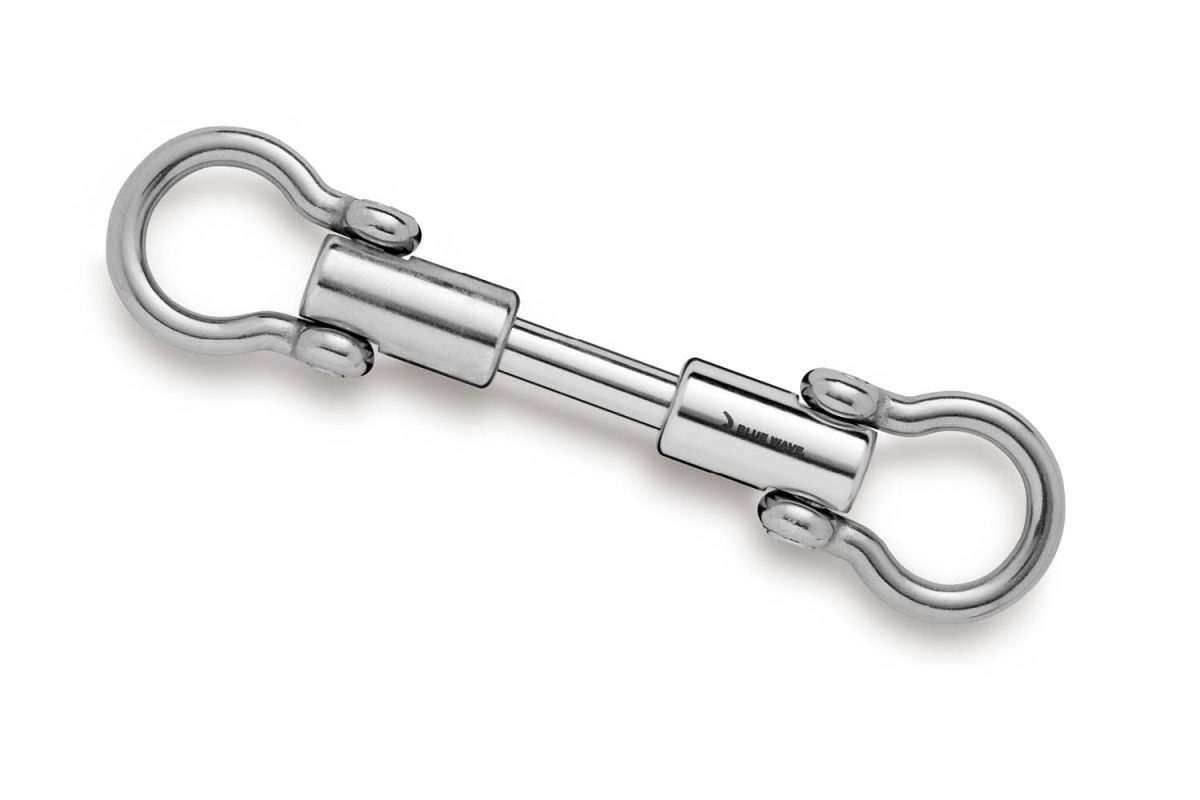

Single gate eye to eye fitting

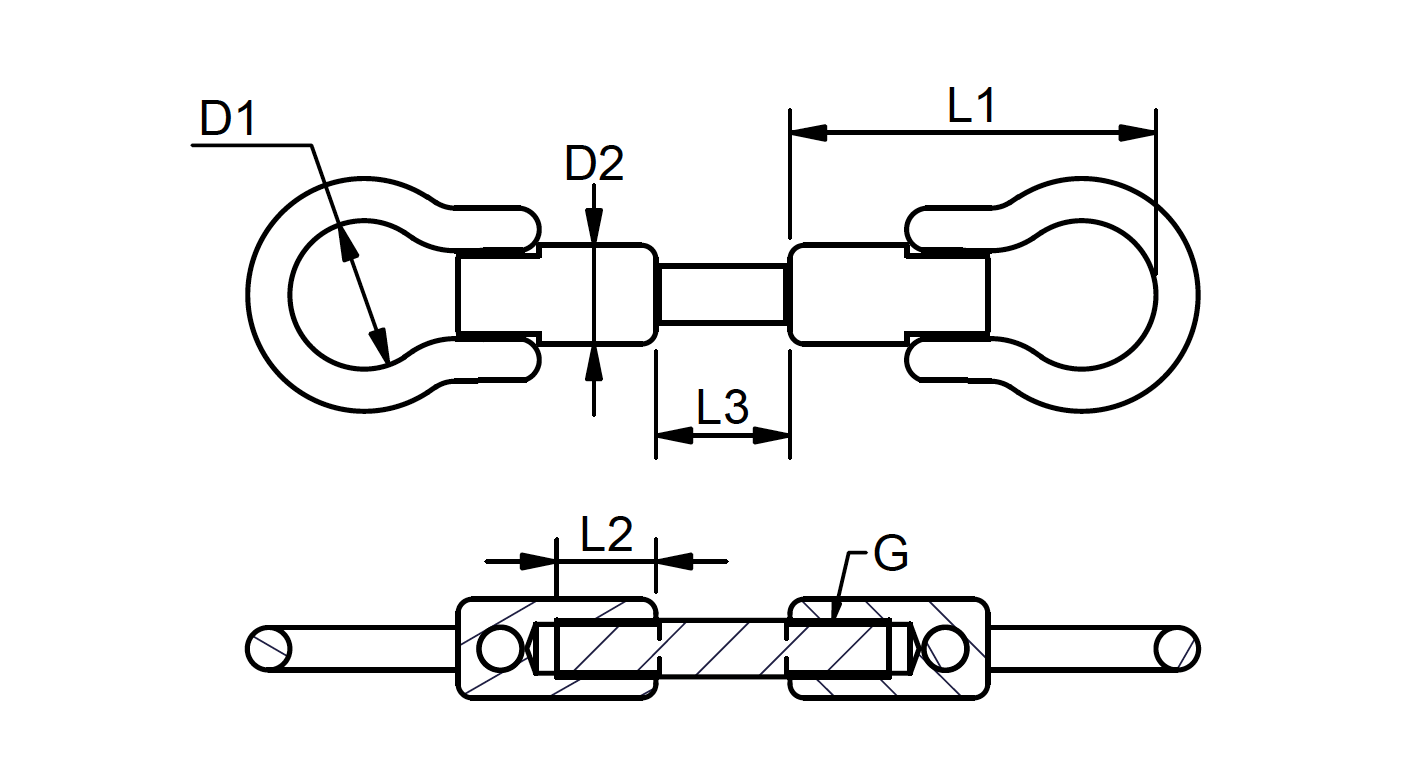

Technical drawing
Datatable
