ROPE TENSION WITH TOGGLE | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

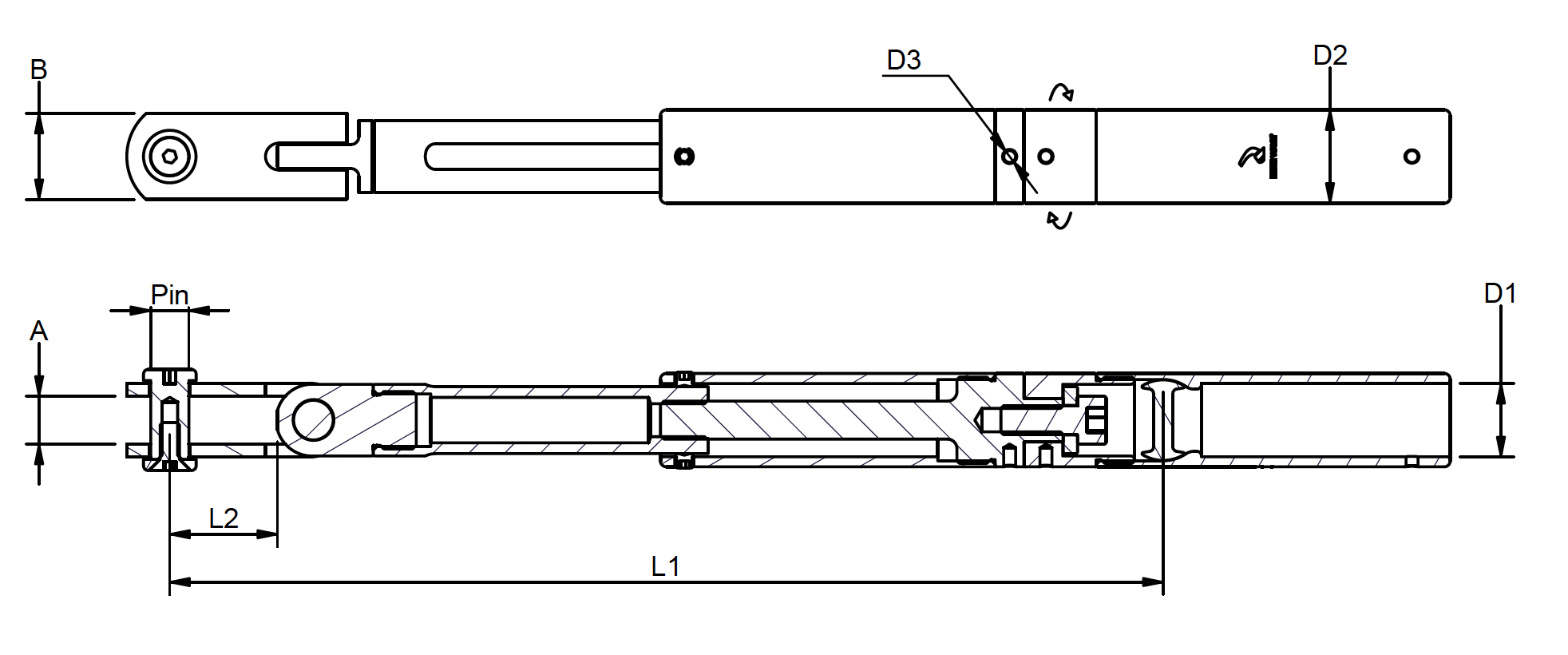

| F | R | W | M | ART. NO. | ROPE | PIN | D1 | D2 | D3 | L1 | L2 | A | B | BL/KG |
| • | RP80125014 | 14 | 8 | 15,3 | 19,5 | 2,5 | 158 - 208 | 22,5 | 10 | 20 | 1200 | |||
| • | RP80125020 | 20 | 9,5 | 20,5 | 23 | 2,5 | 173 - 220 | 28,5 | 12 | 22 | 1200 |

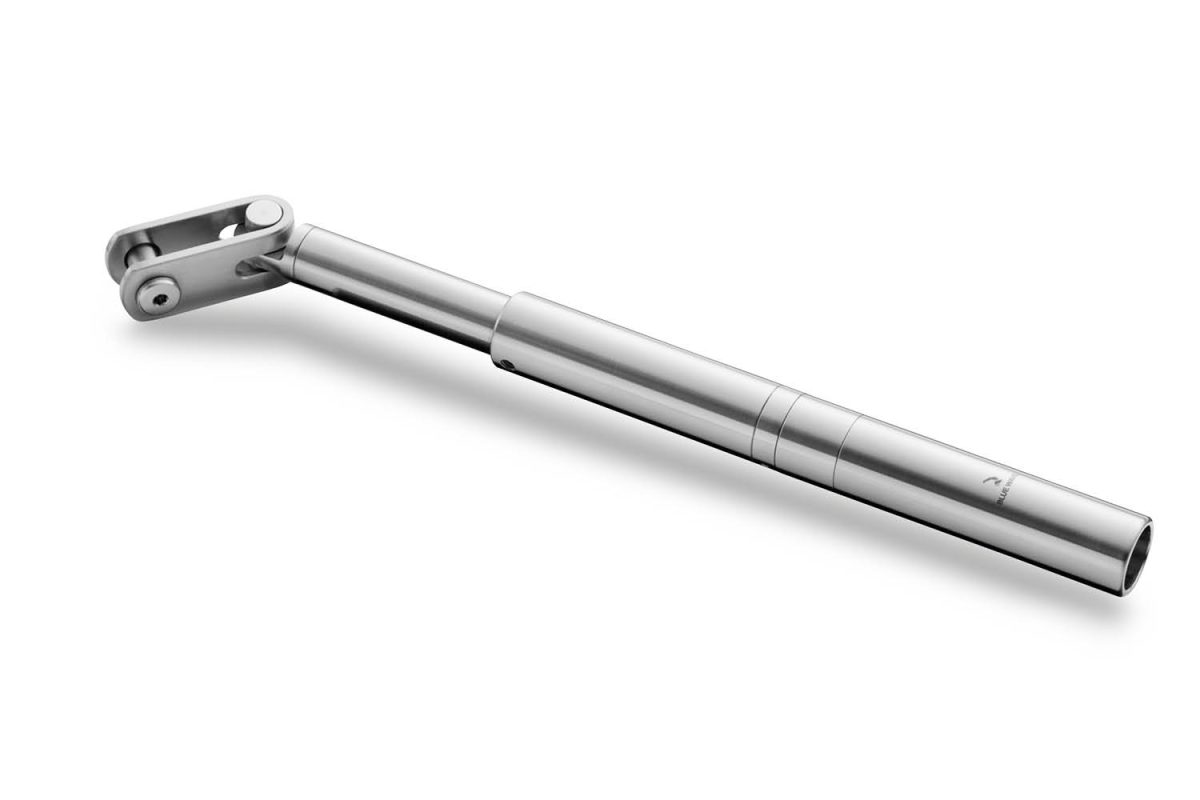

Toggle tensioner with hidden threads and double headed pins.
Swivel and locks with small side mounted Allen-screw.
