ROPE END WITH TOGGLE | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F | R | W | M | ART. NO. | ROPE | PIN | D1 | D2 | D3 | L1 | L2 | L3 | A | B | BL/KG |
| • | RP805010 | 14 | 8 | 15,3 | 19,5 | 2,5 | 22,5 | 60 | 116,5 | 10 | 20 | 1200 | |||
| • | RP805020 | 20 | 9,5 | 20,5 | 23 | 2,5 | 22,5 | 62 | 133,5 | 12 | 22 | 1200 |
Fixed toggle with double headed pin.

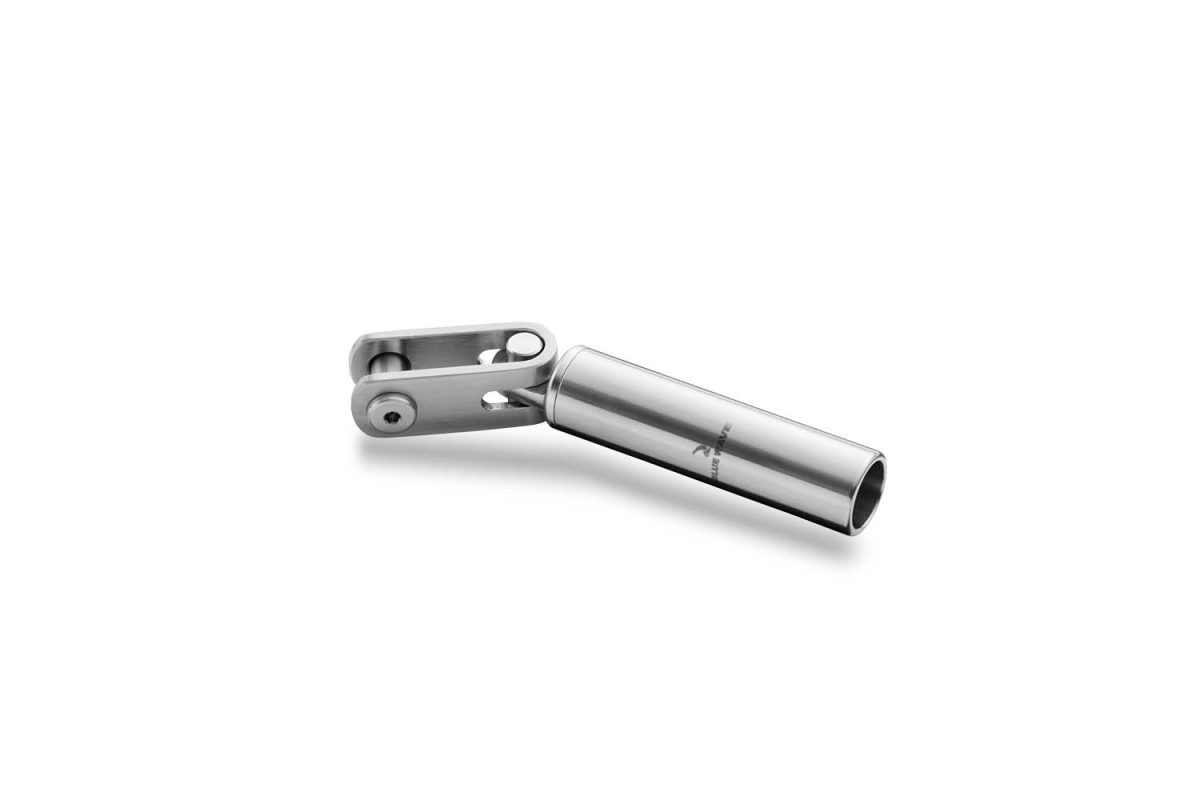

Rope end with toggle
polished stainless steel – AISI 316L

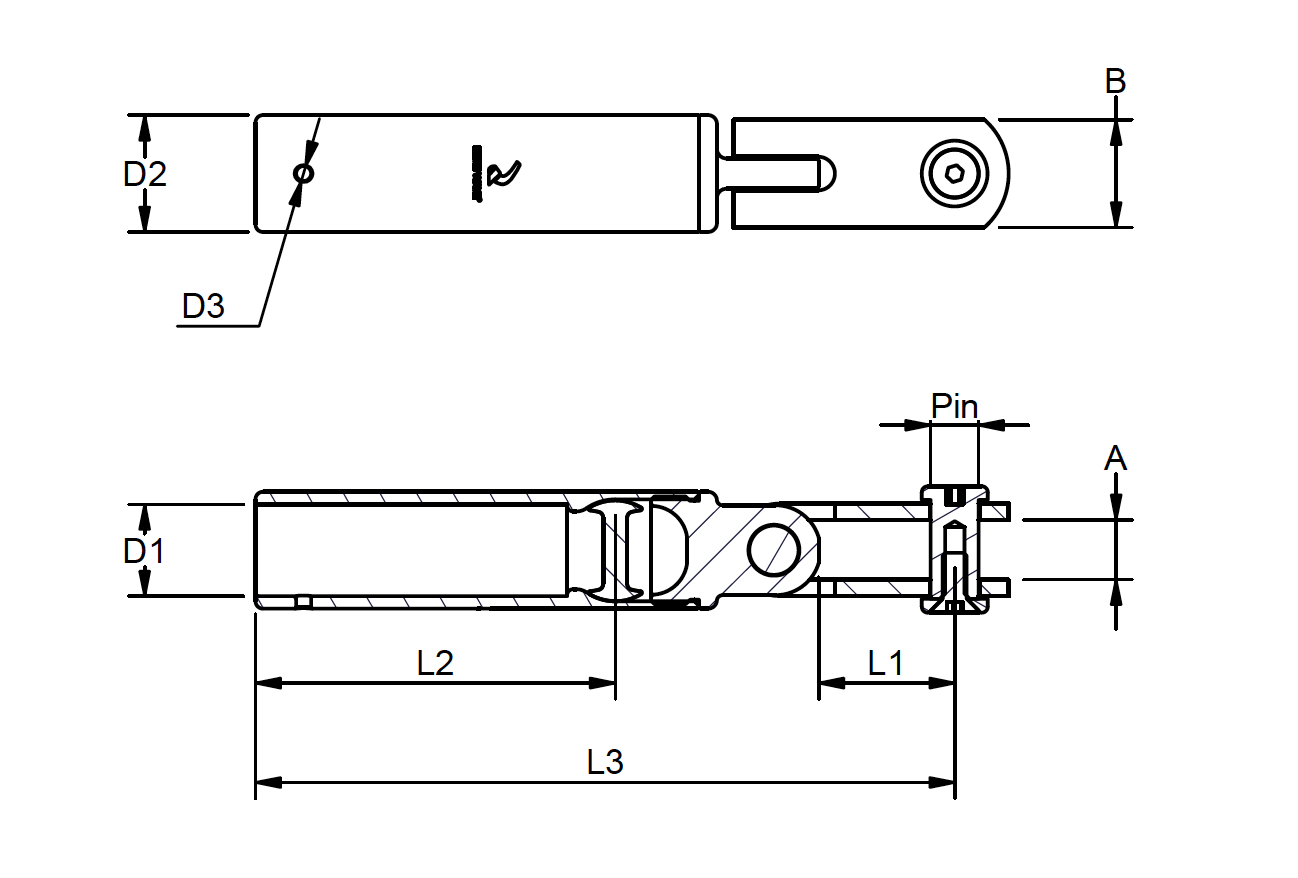

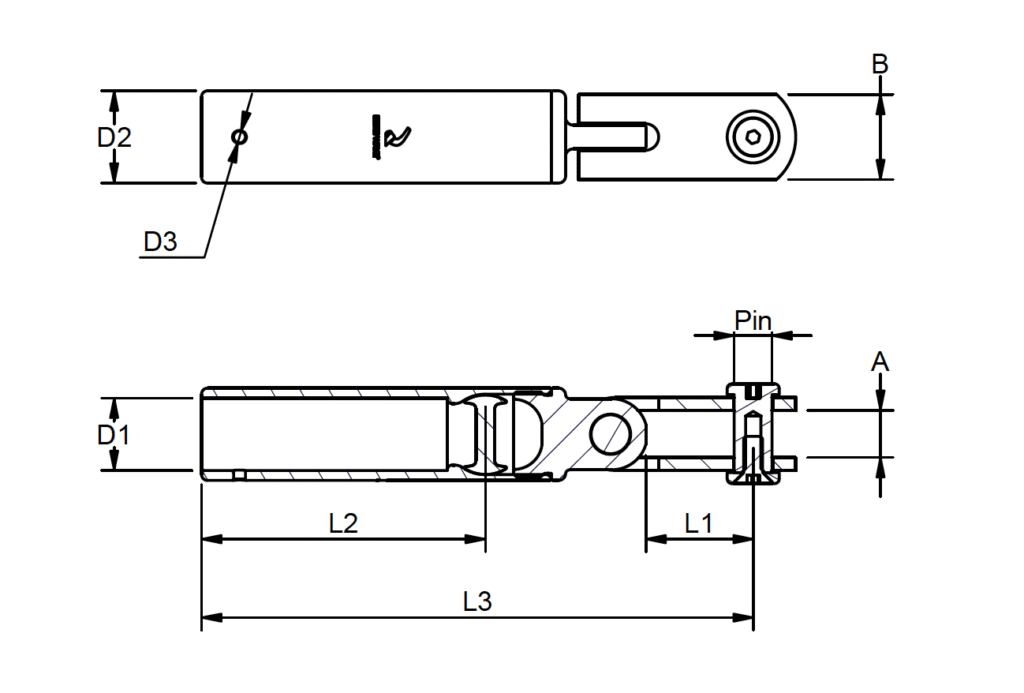

Technical drawing
Datatable
