ROPE END WITH SWIVEL | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F | R | W | M | ART. NO. | ROPE | G | D1 | D2 | D3 | L1 | L2 | L3 | BL/KG |
| • | RP804510 | 14 | 5/16" | 15,3 | 19,5 | 2,5 | 101 | 8 | 60 | 1200 | |||
| • | RP804520 | 20 | 5/16" | 20,5 | 23 | 2,5 | 106 | 8 | 62 | 1200 |
Suited for e.g. 5/16″ Gatehook attachment.

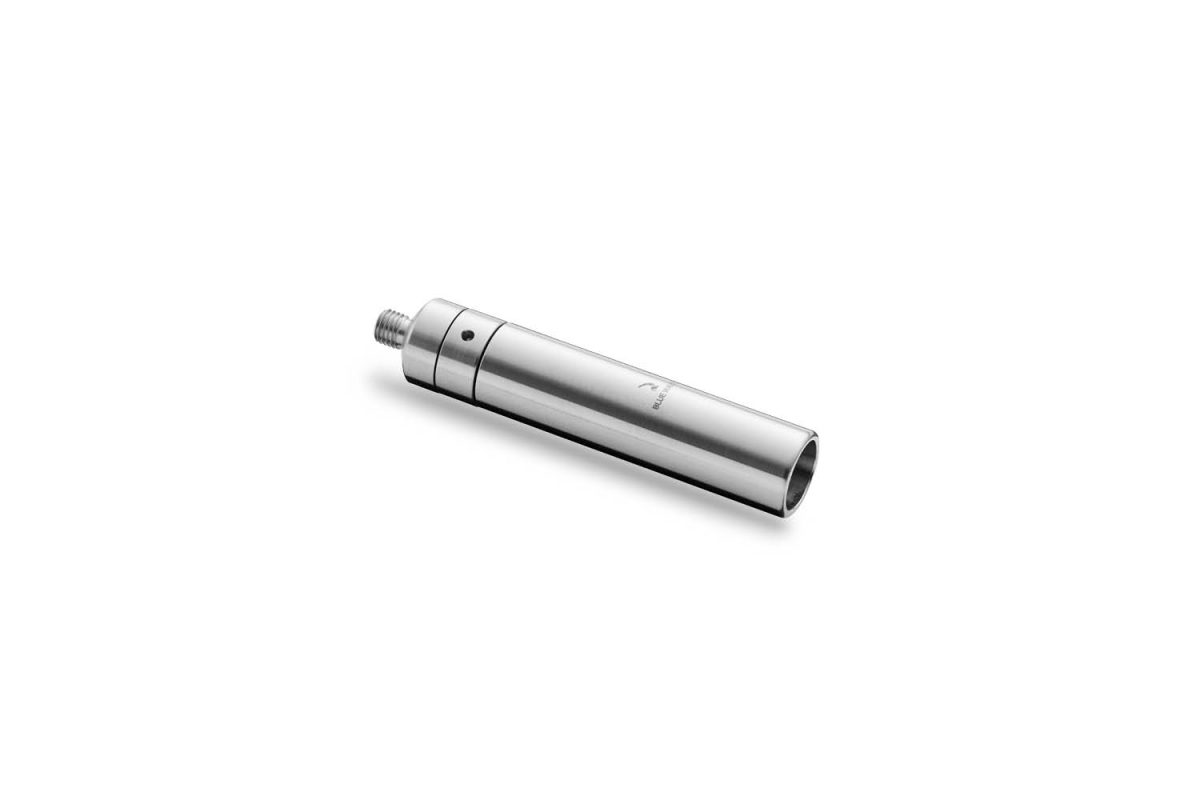

Rope end with swivel
polished stainless steel – AISI 316L

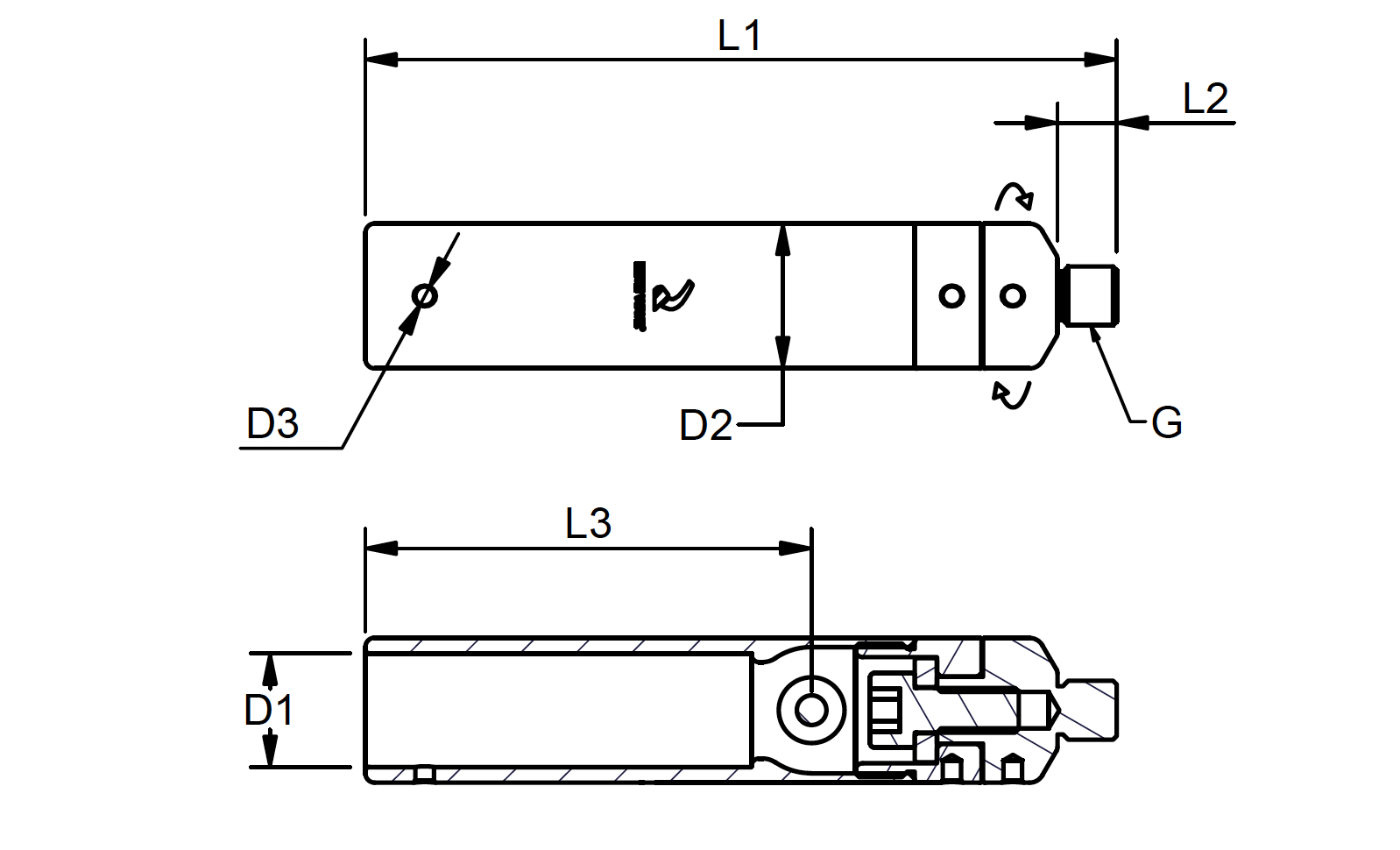

Technical drawing
Datatable
