QUICK RACE TUNING - QRT - HAND OPERATED TURNBUCKLE | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F | R | W | M | ART. NO. | WIRE | G | PIN | A | B | D1 | MIN - MAX | BL/KG | KG/100 | |
| • | HQR04014 | 4 | 5/32" | 1/4" | 6,35 | 8 | 16 | 32 | 211 - 281 | 1300 | 17,9 |

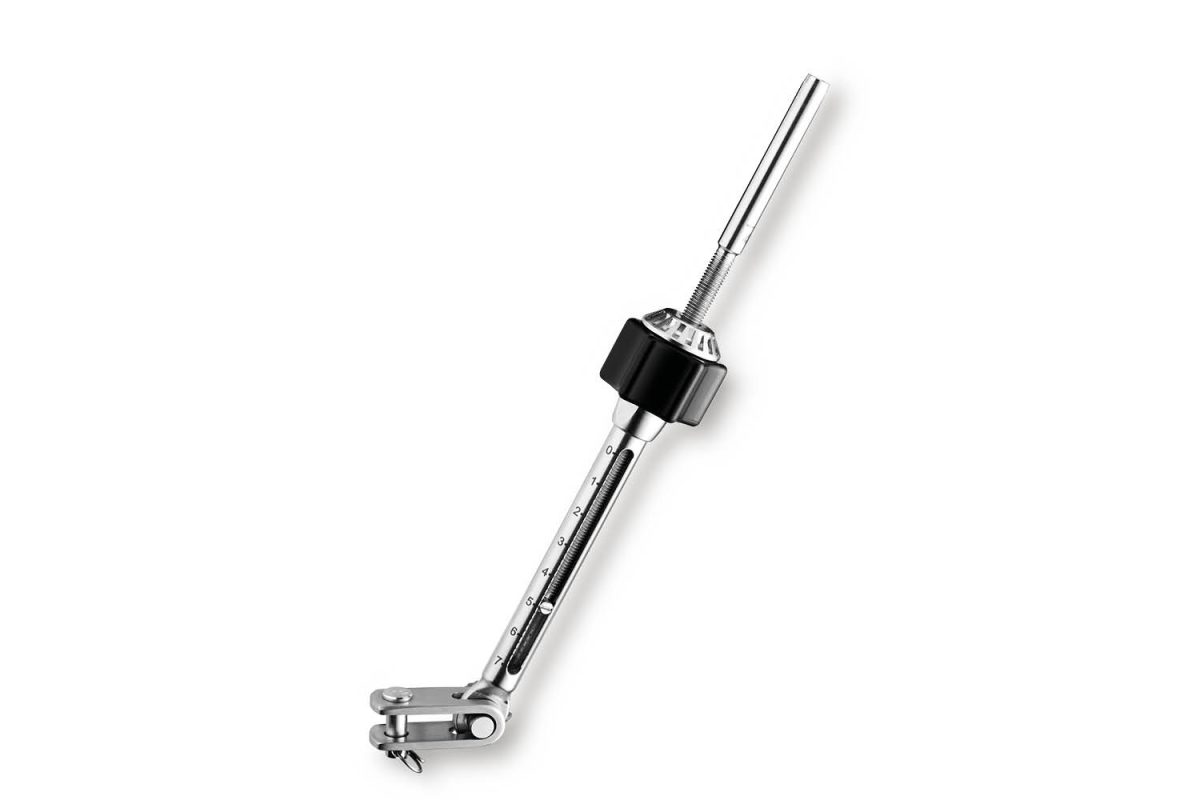

Quick race tuning – QRT – hand operated turnbuckle
Polished stainless steel – AISI 316L

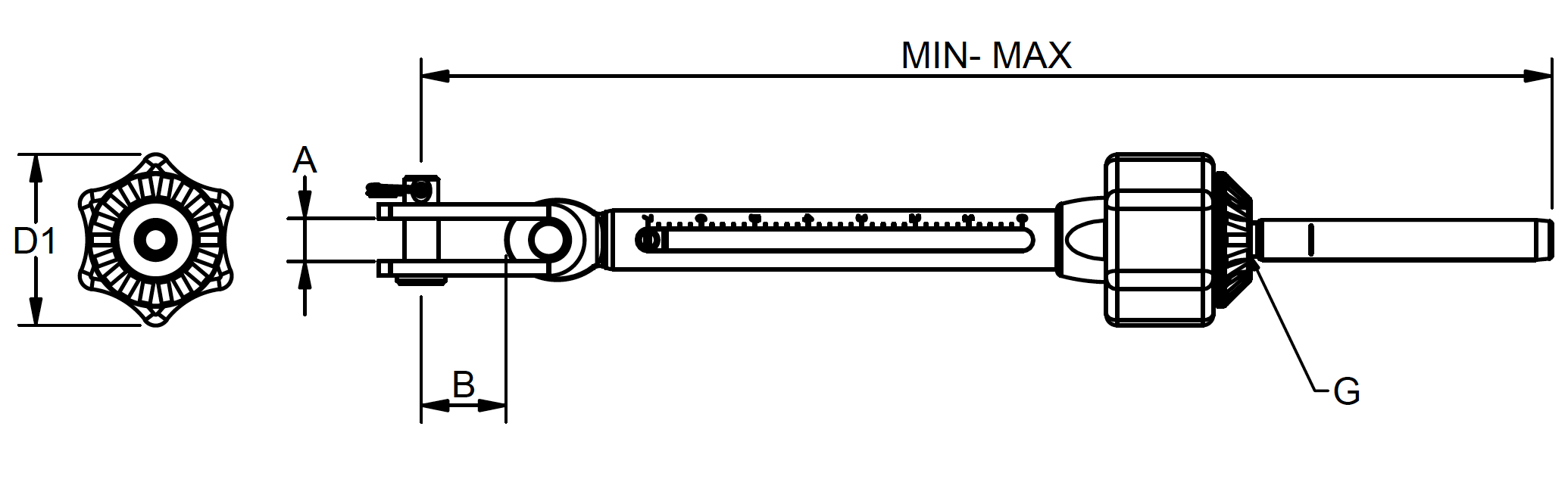

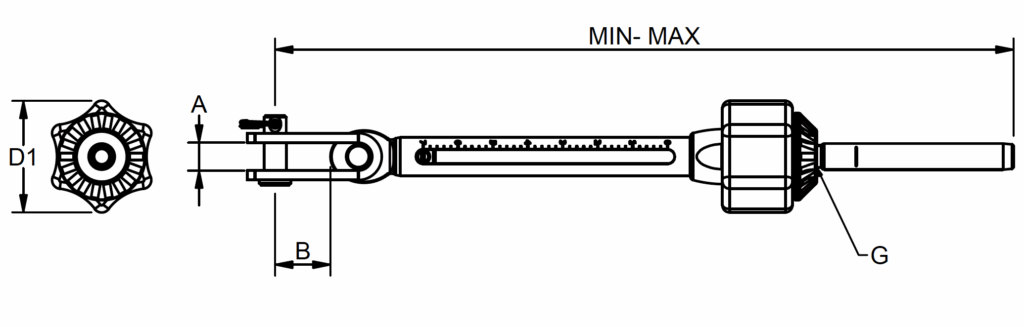

Technical drawing
Datatable
Slide to see table
Long stroke QRT for optimal adjustment.
Do not use wrench on the black pom nut. Only for hand adjustment with max load up to 150kg.
