MASTHEAD TOGGLES | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F | R | W | M | ART. NO. | PIN | A | B | L1 | L2 | L3 | BL/KG | KG/100 | PACK |
| • | MH2511 | 11,1 | 15 | 11,1 | 46 | 23 | 30 | 4100 | 17,8 | BULK | |||
| • | MH2512 | 12,7 | 18 | 12,7 | 52 | 26 | 30 | 6200 | 21 | BULK | |||
| • | MH2516 | 15,9 | 20 | 15,9 | 65 | 32 | 35 | 9800 | 41,5 | BULK | |||
| • | MH2519 | 19,0 | 24 | 19,0 | 78 | 39 | 40 | 13000 | 72 | BULK | |||
| • | MH2522 | 22,0 | 26 | 22,0 | 90 | 46 | 50 | 19200 | 110 | BULK | |||
| • | MH2525 | 25,4 | 29 | 25,4 | 110 | 62 | 60 | 24000 | 188 | BULK |

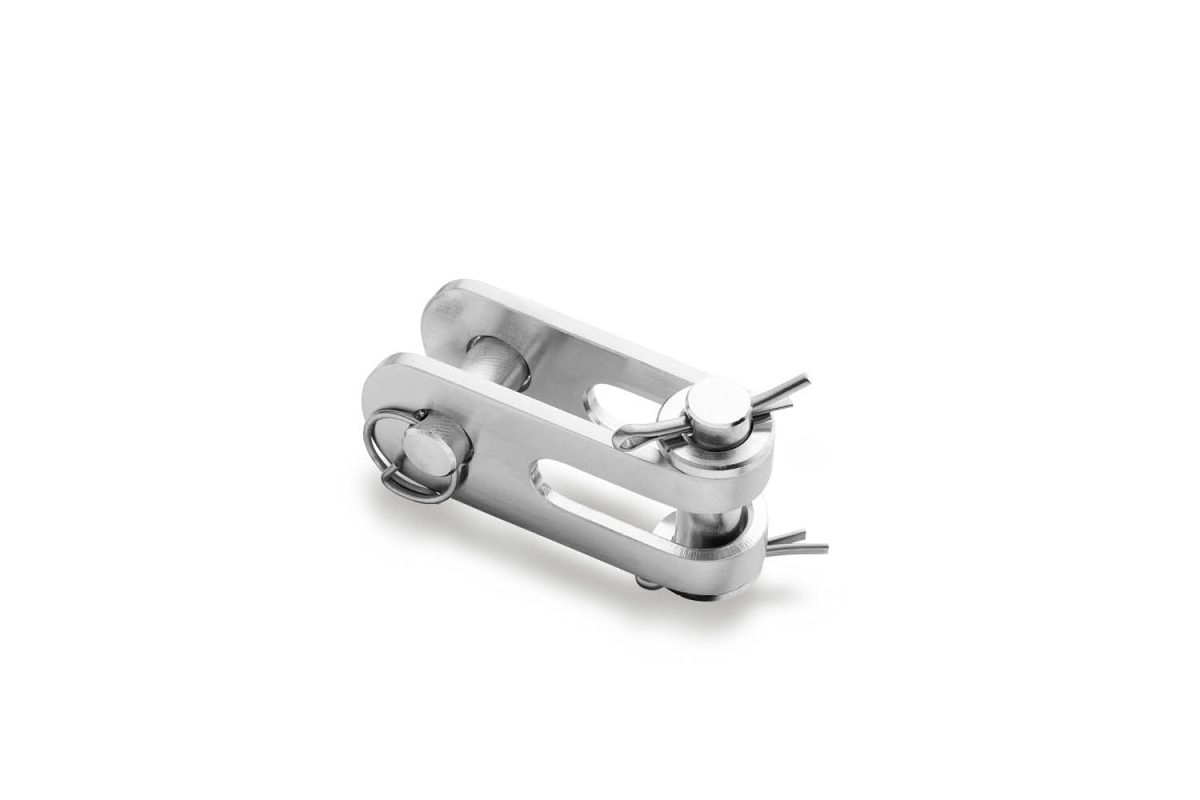

Masthead toggles
Polished stainless steel – AISI 316

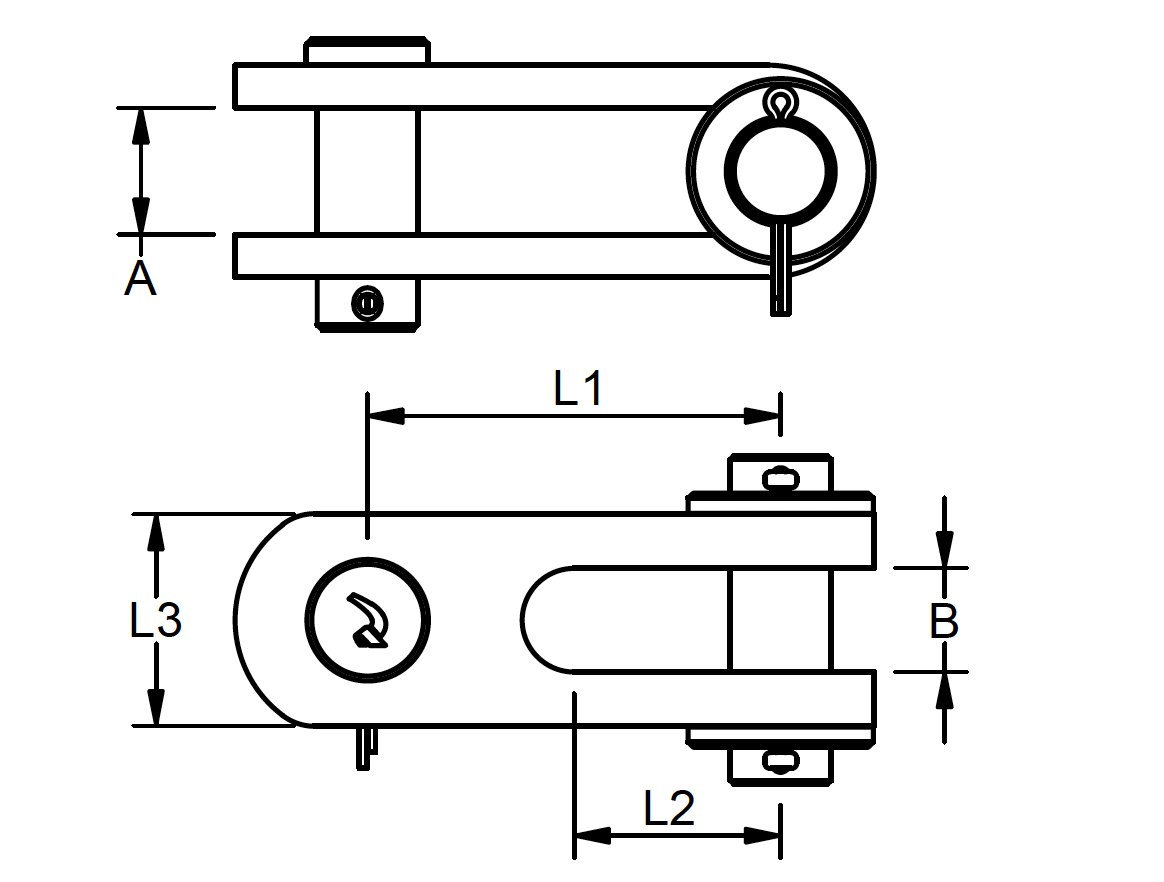

Technical drawing
Datatable
Slide to see table
