LIFELINE THREAD TERMINAL | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F | R | W | M | ART. NO. | G | D1 | D2 | L1 | L2 | L3 | KG/100 | PACK |
| • | GH900306A | 1/4" | 6,35 | 3,4 | 79 | 43 | 26 | 1,8 | 10 | |||
| • | GH903206A | 1/4" | 6,35 | 3,5 | 74 | 43 | 26 | 1,6 | 10 | |||
| • | GH900406A | 1/4" | 7,5 | 4,4 | 81 | 43 | 28 | 2,0 | 10 | |||
| • | GH900506A | 1/4" | 9 | 5,3 | 83 | 43 | 30 | 2,4 | 10 | |||
| • | GH900606A | 1/4" | 9 | 6,5 | 90 | 43 | 40 | 2,2 | 10 | |||
| • | GH900308A | 5/16" | 6,35 | 3,4 | 79 | 48 | 26 | 2,5 | 10 | |||
| • | GH900408A | 5/16" | 7,5 | 4,4 | 81 | 48 | 28 | 2,7 | 10 | |||
| • | GH900508A | 5/16" | 9 | 5,3 | 83 | 48 | 30 | 3,1 | 10 |

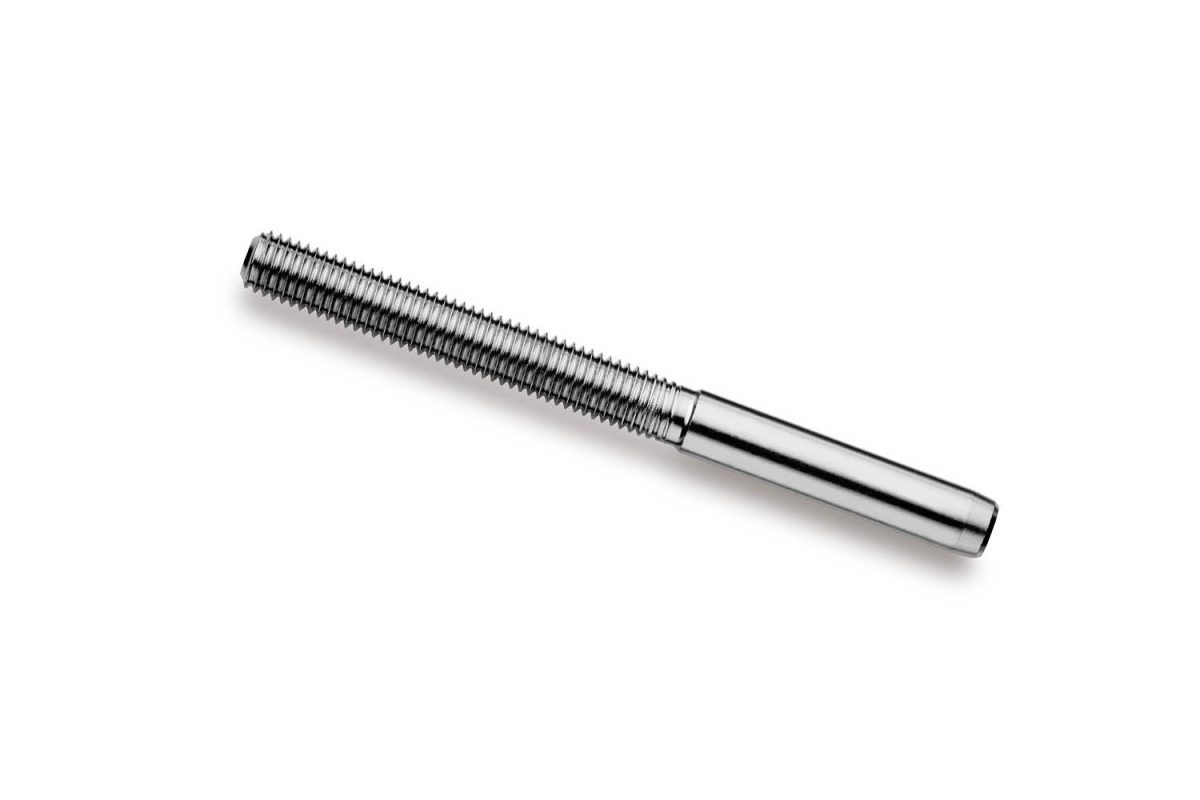

Lifeline thread terminal
Polished stainless steel – AISI 316L

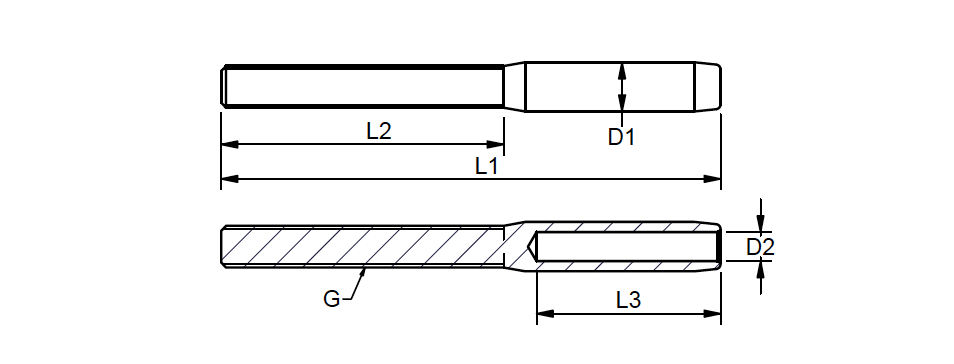

Technical drawing
Datatable
