LIFELINE SHORT TOGGLE TERMINAL | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F | R | W | M | ART. NO. | WIRE | PIN | A | D1 | D2 | L1 | L2 | L3 | KG/100 | PACK |
| • | 506303GK | 3 - 1/8" | 6,35 | 7 | 6,35 | 3,4 | 14 | 12 | 26 | 3,3 | 10 | |||
| • | 506304GK | 4 - 5/32" | 6,35 | 7 | 7,5 | 4,4 | 14 | 12 | 28 | 3,5 | 10 | |||
| • | 506305GK | 5 - 3/16" | 6,35 | 7 | 9 | 5,3 | 14 | 12,0 | 30 | 3,9 | 10 |

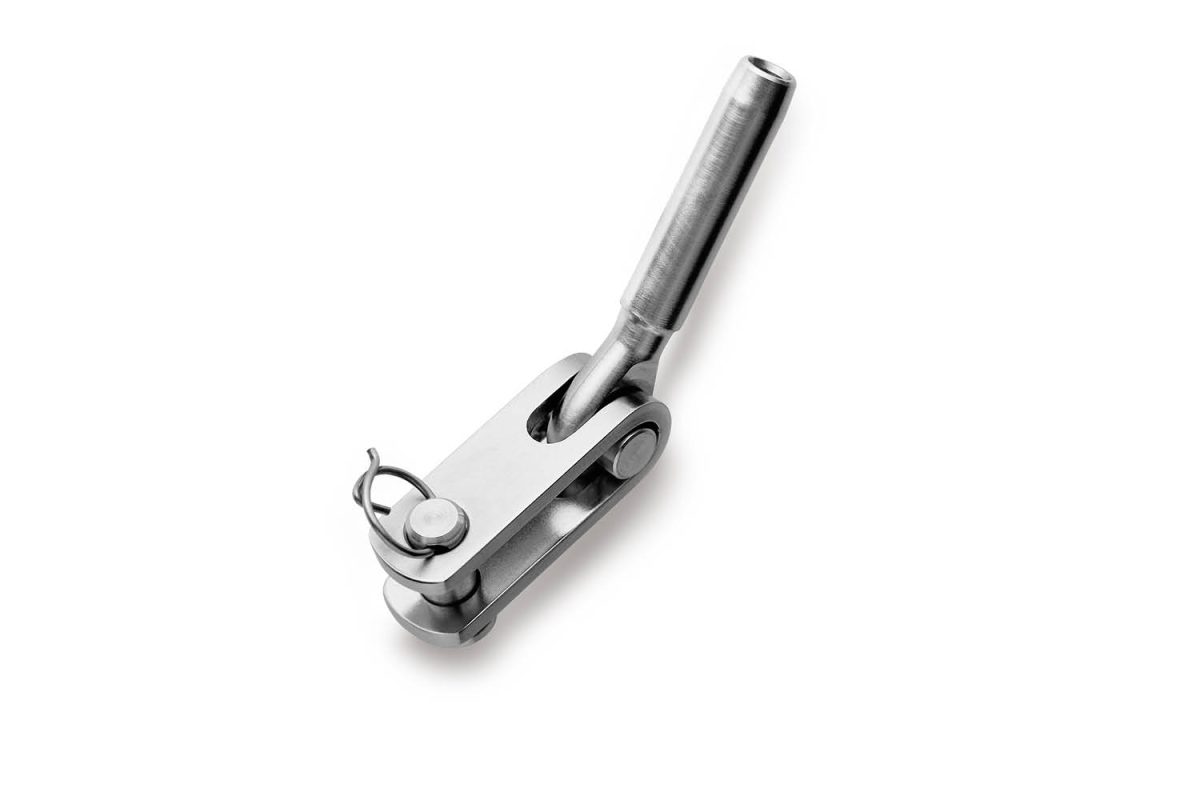

Lifeline short toggle terminal
Polished stainless steel – AISI 316

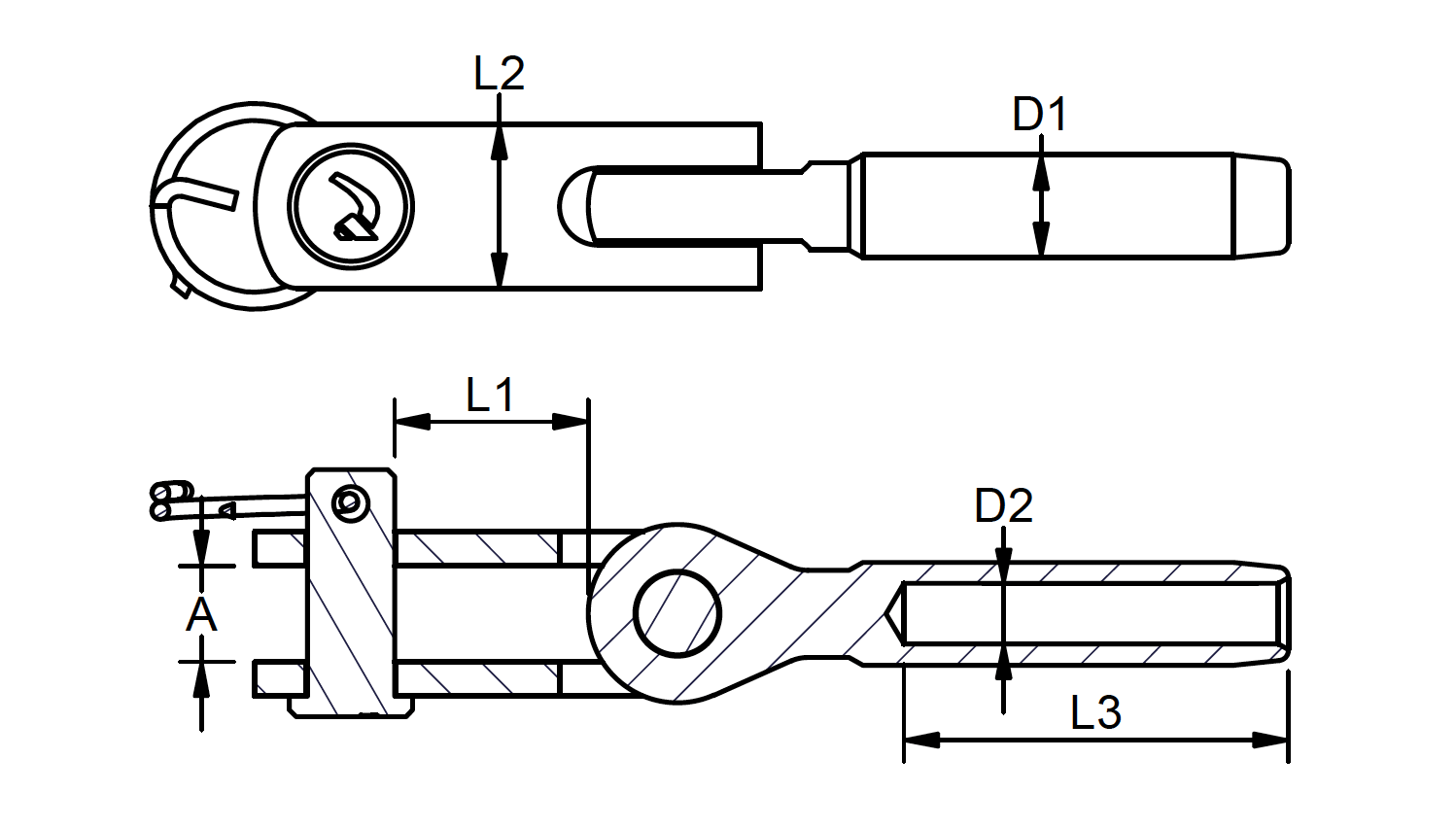

Technical drawing
Datatable
Slide to see table
