LIFELINE SHORT THREAD TERMINAL | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F | R | W | M | ART. NO. | WIRE | G | D1 | D2 | L1 | L2 | L3 | KG/100 | PACK |
| • | 510308AK | 3 - 1/8" | 5/16" | 6,35 | 3,4 | 45 | 14 | 26 | 1,1 | 10 | |||
| • | 510408AK | 4 - 5/32" | 5/16" | 7,5 | 4,4 | 47 | 14 | 28 | 1,3 | 10 | |||
| • | 510508AK | 5 - 3/16" | 5/16" | 9 | 5,3 | 49 | 14 | 30,0 | 1,7 | 10 |
Lifeline short thread terminals
Polished stainless steel – AISI 316L

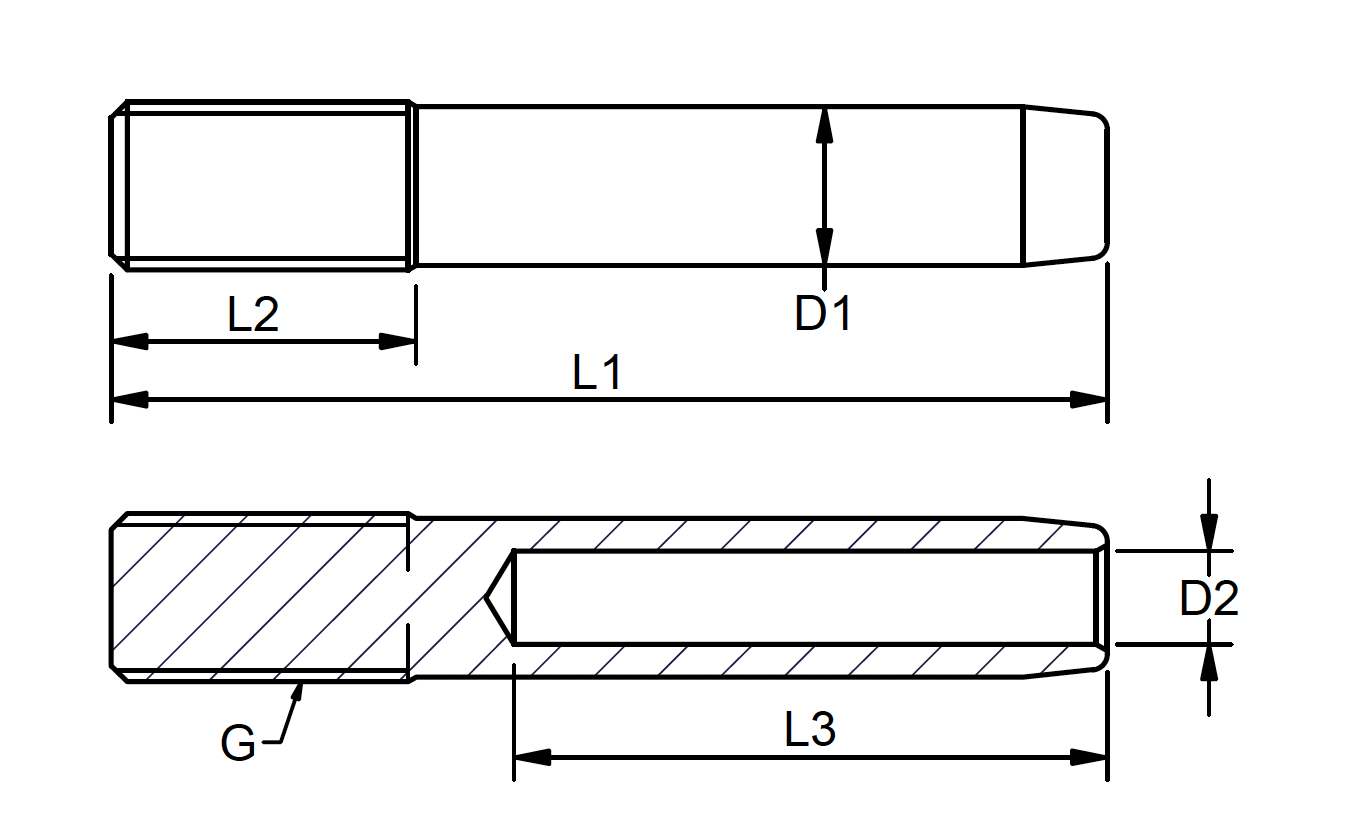

Technical drawing
Datatable
Slide to see table
