GATE HOOK ONE SNAP WITH TERMINAL | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F | R | W | M | ART. NO. | WIRE | THREAD | D1 | D2 | D3 | L1 | MIN - MAX | KG/100 |
| • | GH0306 | 3 - 1/8" | M6 | 10 | 17 | 6,4 | 26 | 101 - 124 | 11,3 | |||
| • | GH0306A | 3 - 1/8" | 1/4" | 10 | 17 | 6,4 | 26 | 100 - 117 | 11,3 | |||
| • | GH0308 | 3 - 1/8" | M8 | 13 | 19 | 6,4 | 26 | 121 - 156 | 17,3 | |||
| • | GH0308A | 3 - 1/8" | 5/16" | 13 | 19 | 6,4 | 26 | 121- 141 | 17,3 | |||
| • | GH0406 | 4 - 5/32" | M6 | 10 | 17 | 7,5 | 28 | 104 - 127 | 11,5 | |||
| • | GH0406A | 4 - 5/32" | 1/4" | 10 | 17 | 7,5 | 28 | 104 - 121 | 11,7 | |||
| • | GH0408 | 4 - 5/32" | M8 | 13 | 19 | 7,5 | 28 | 123 - 158 | 17,9 | |||
| • | GH0408A | 4 - 5/32" | 5/16" | 13 | 19 | 7,5 | 28 | 123 - 143 | 17,3 | |||
| • | GH0506 | 5 - 3/16" | M6 | 10 | 17 | 9 | 30 | 107 - 130 | 12,1 | |||
| • | GH0506A | 5 - 3/16" | 1/4" | 10 | 17 | 9 | 30 | 107 - 124 | 12,1 | |||
| • | GH0508 | 5 - 3/16" | M8 | 13 | 19 | 9 | 30 | 126 - 161 | 18 | |||
| • | GH0508A | 5 - 3/16" | 5/16" | 13 | 19 | 9 | 30 | 126 - 146 | 17,8 |

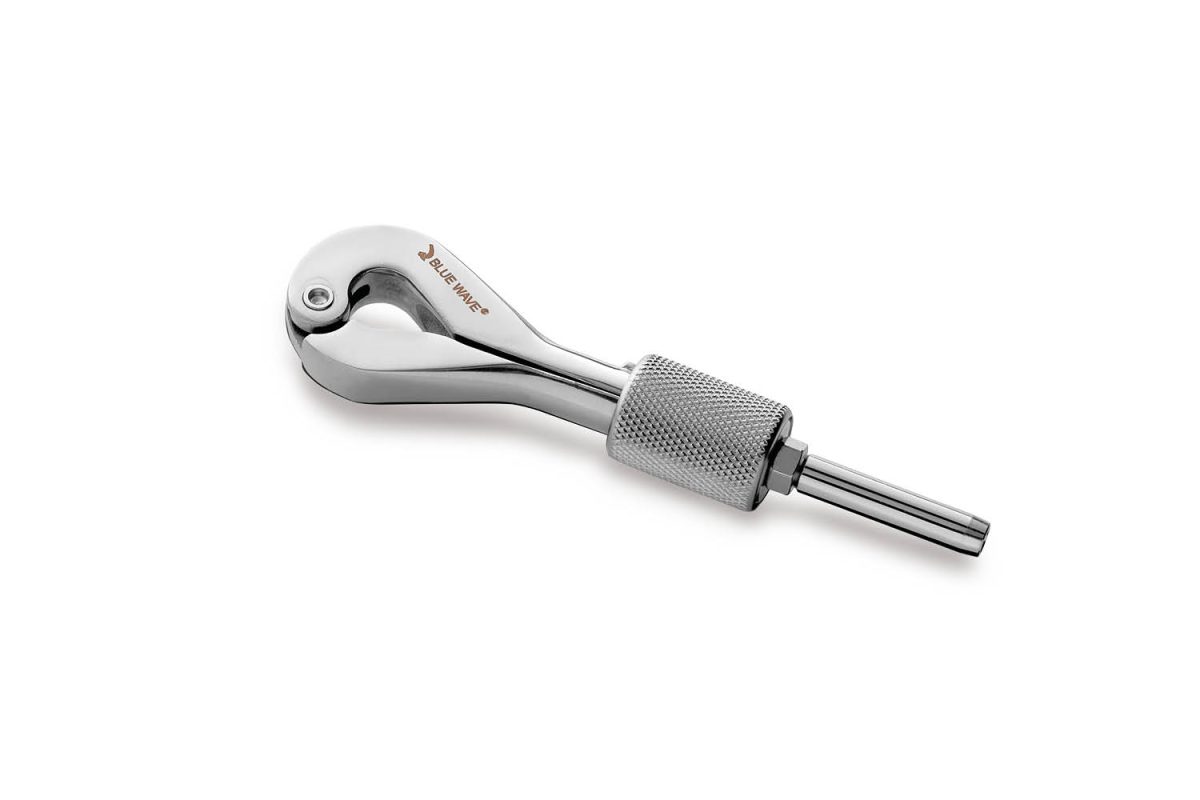

Gate hook one snap with terminal

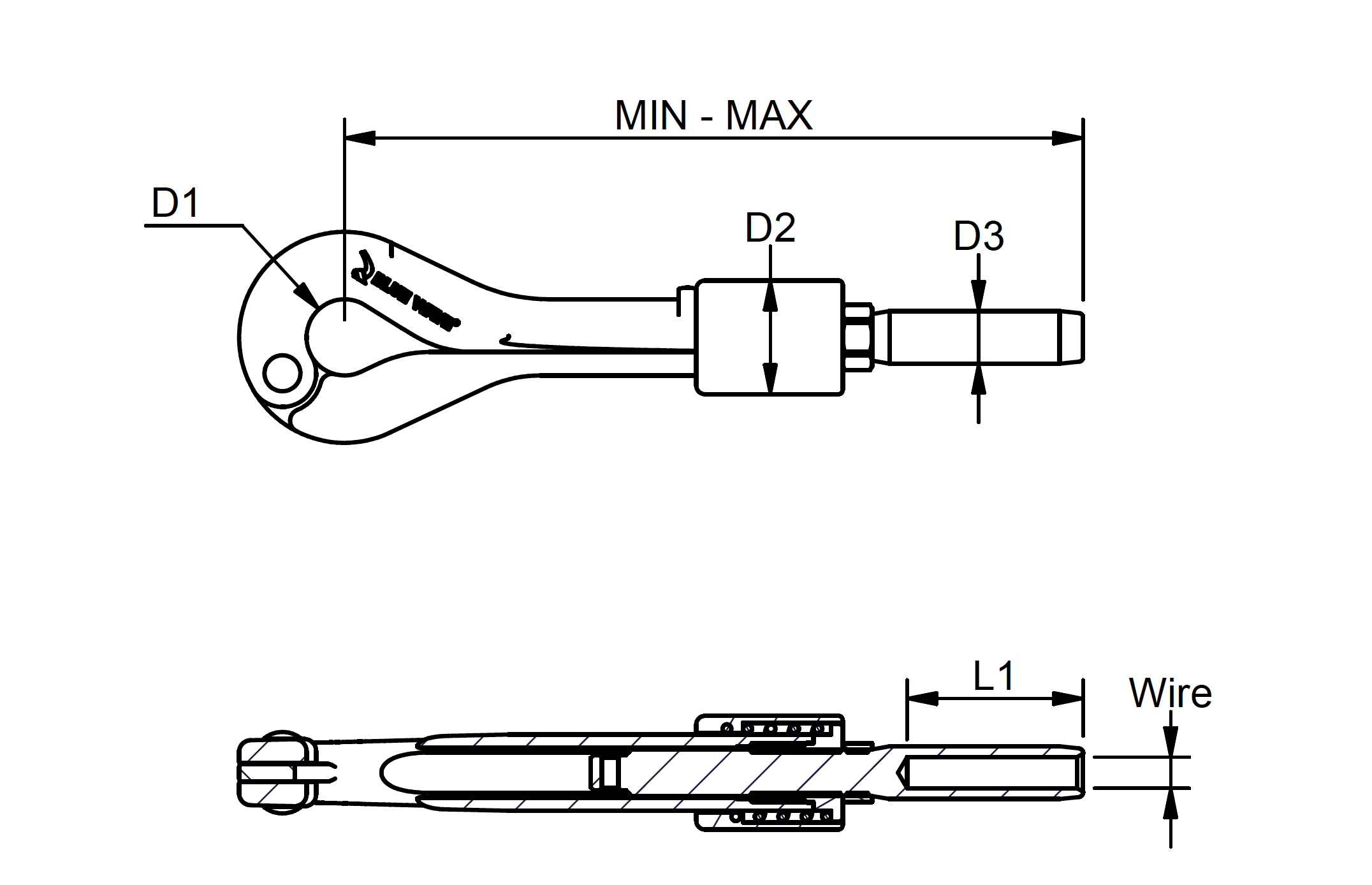

Technical drawing
