DOUBLE GATE EYE WITH TERMINAL | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F | W | M | ART. NO. | WIRE | G | D1 | D2 | D3 | L1 | L2 | KG/100 | PACK |
| • | GE0308AD | 3 - 1/8" | 5/16" | 21 | 14 | 6,35 | 166 | 26 | 12,5 | 10 | ||
| • | GE0408AD | 4 - 5/32" | 5/16" | 21 | 14 | 7,5 | 170 | 28 | 12,7 | 10 | ||
| • | GE0508AD | 5 - 3/16" | 5/16" | 21 | 14 | 9 | 174 | 30 | 12,9 | 10 |
Double gate eye with terminal

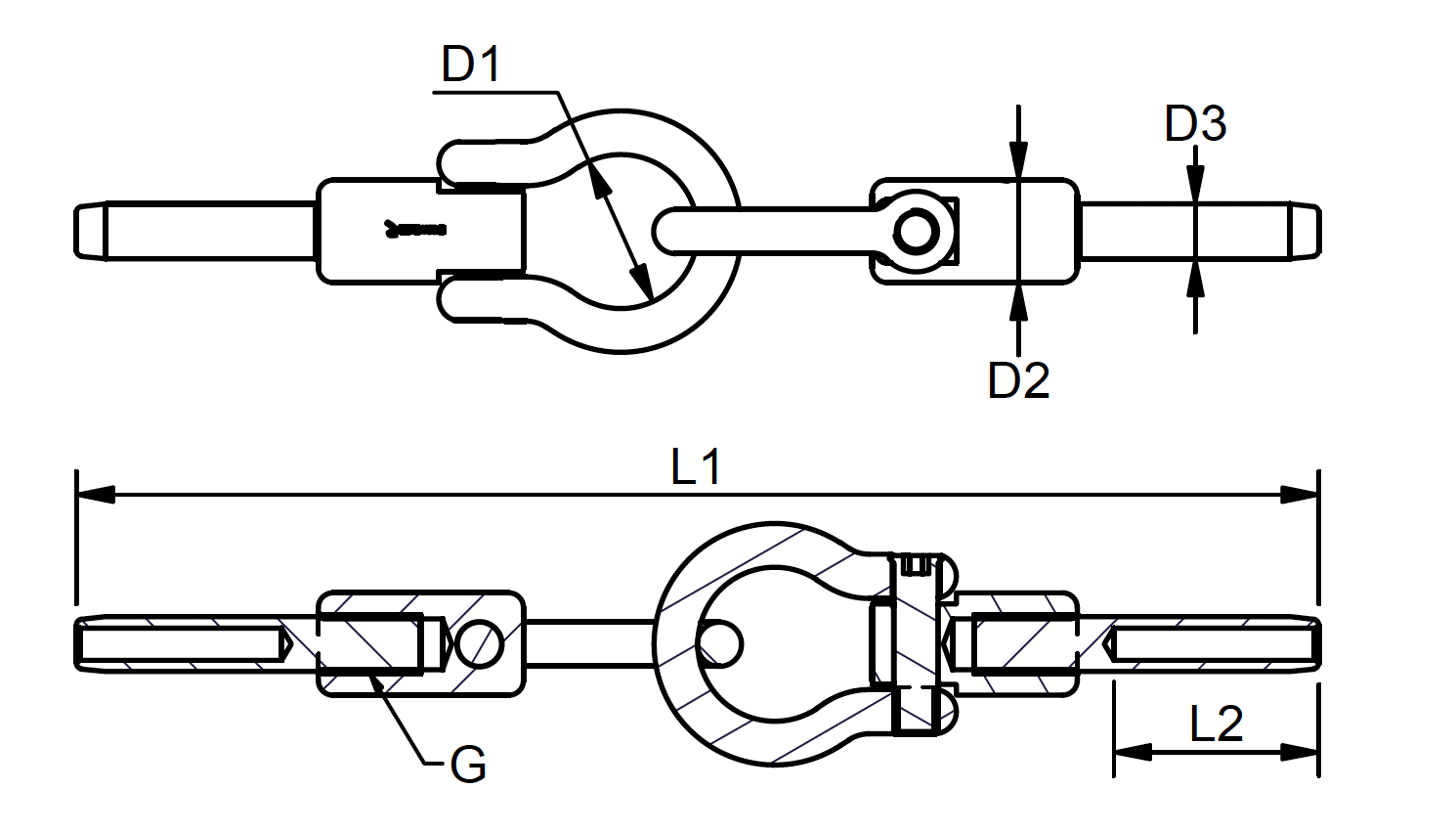

Technical drawing
Datatable
Slide to see table
