BALL CUP | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| F | R | W | M | ART.NO. | WIRE | D1 | D2 | D3 | L4 | KG/100 | PACK |
| • | 626204 | 3 - 4 | 26 | 9 | 22,4 | 11 | 1 | 20 | |||
| • | 626205 | 5 | 26 | 11,25 | 22,4 | 11 | 1 | 20 | |||
| • | 626207 | 6 - 7 | 26 | 16 | 22,4 | 9,5 | 1 | 20 | |||
| • | 626212 | 8 - 10 | 34 | 20 | 30 | 12 | 1,5 | 10 | |||
| • | 626212X | 12 | 34 | 21,4 | 30 | 12 | 1,5 | PACK |
Ball cup
Polished stainless steel – AISI 316

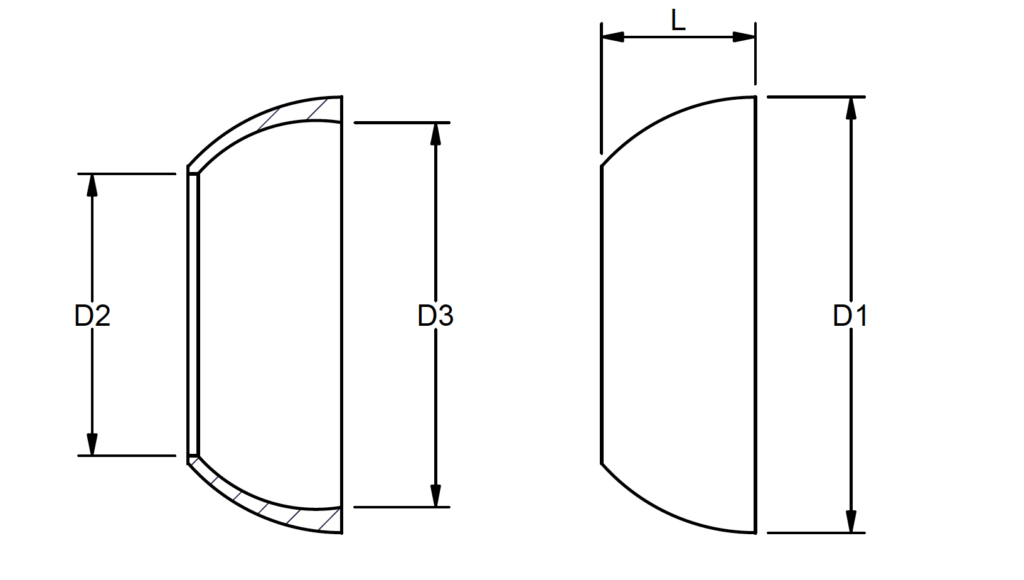

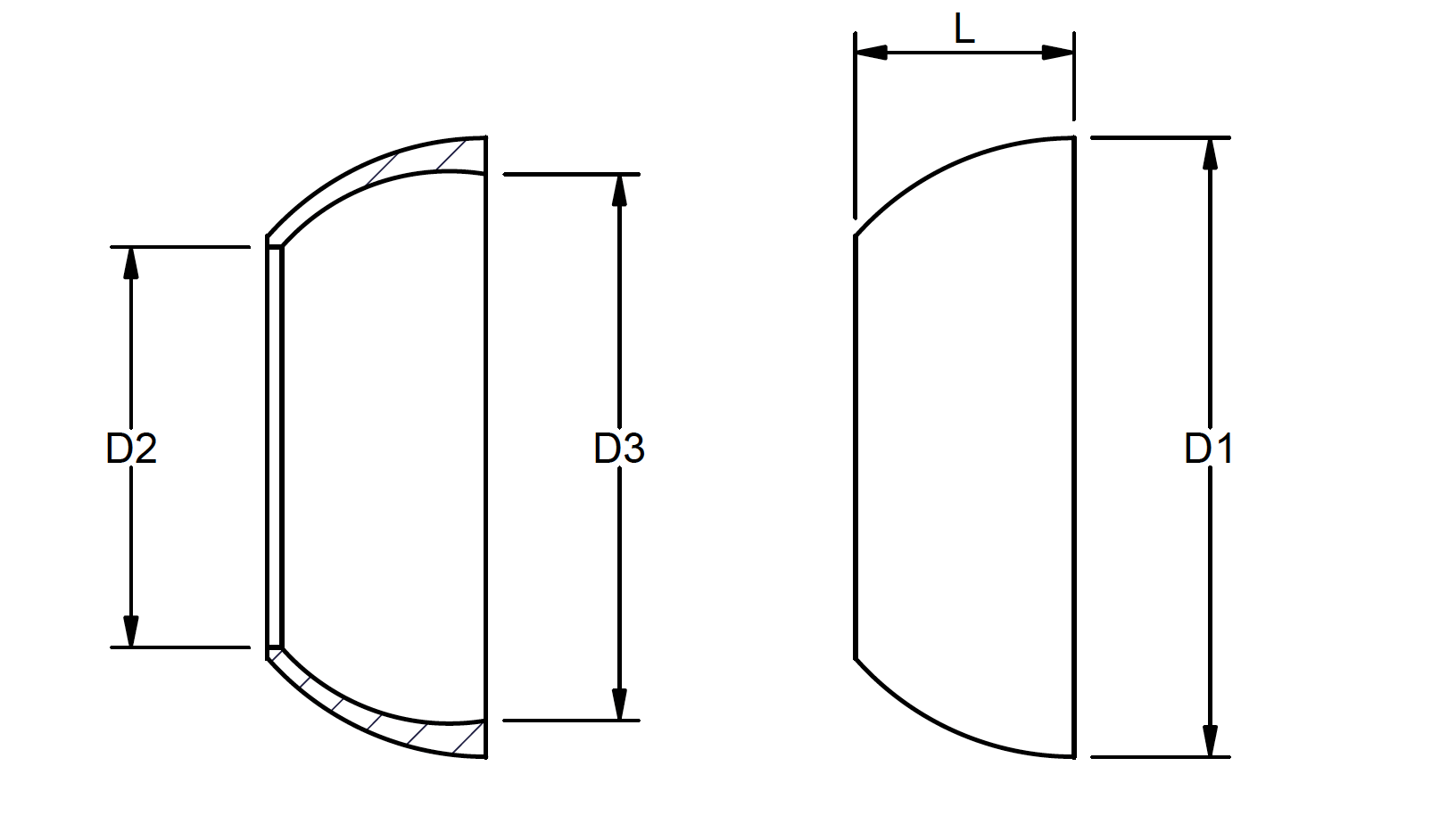

Technical drawing
Datatable
Slide to see table
Suitable Ballterminals:
