APEX LOCK NUTS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| F | R | W | M | ART. NO. RIGHT | ART. NO. LEFT | G | B | KW | KG/100 | PACK |
| • | 042410A | 052410A | 3/8" | 7 | 14 | 0,7 | BULK | |||
| • | 042411A | 052411A | 7/16" | 7,5 | 16 | 0,9 | BULK | |||
| • | 042412A | 052412A | 1/2" | 8 | 17 | 1,1 | BULK | |||
| • | 042416A | 052416A | 5/8" | 11 | 20 | 1,7 | BULK | |||
| • | 042420A | 052420A | 3/4" | 13 | 26 | 4,2 | BULK | |||
| • | 042422A | 052422A | 7/8" | 16 | 29 | 5,6 | BULK | |||
| • | 042425A | 052425A | 1" | 18 | 32 | 7,3 | BULK | |||
| • | 042427A | 052427A | 1 1/8" | 22 | 37 | 12 | BULK | |||
| • | 042430A | 052430A | 1 1/4" | 24 | 41 | 17,1 | BULK | |||
| • | 042436A | 052436A | 1 3/8" | 26 | 45 | 21,4 | BULK | |||
| • | 042442A | 052442A | 1 5/8" | 29 | 52 | 29,8 | BULK |

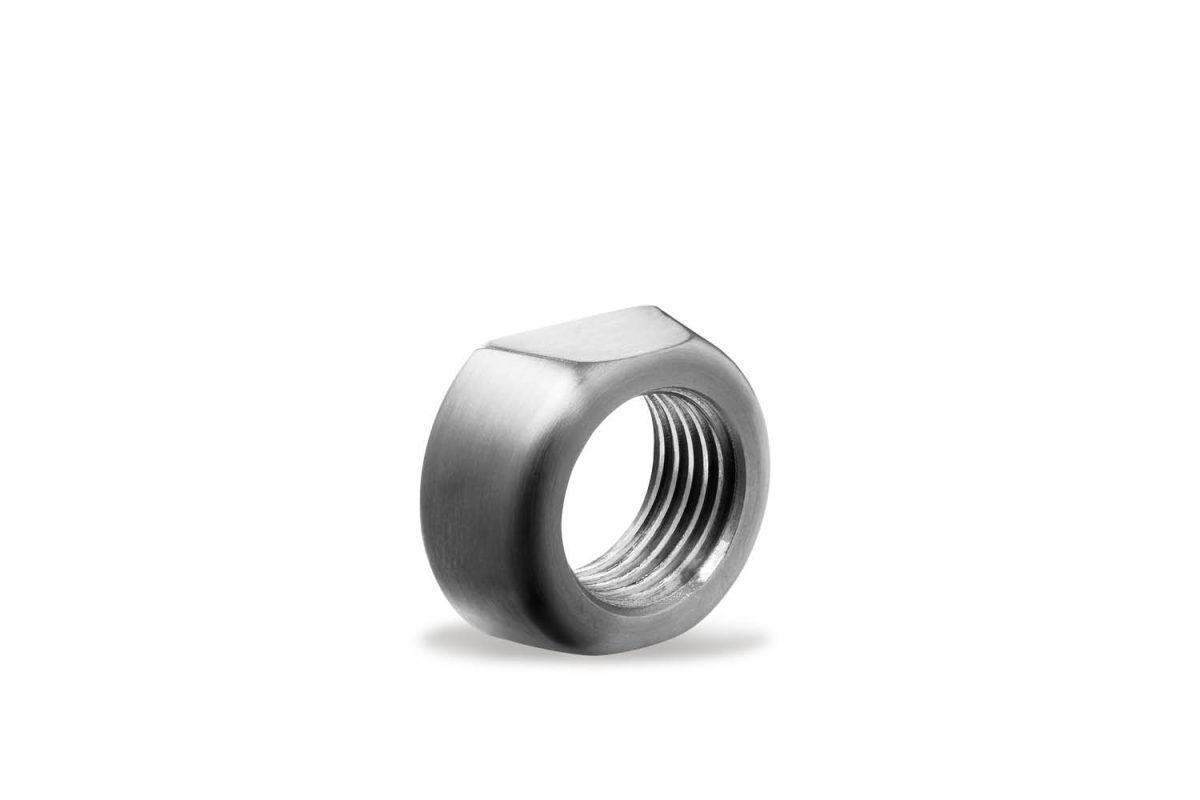

Apex lock nuts
Polished stainless steel – AISI 316

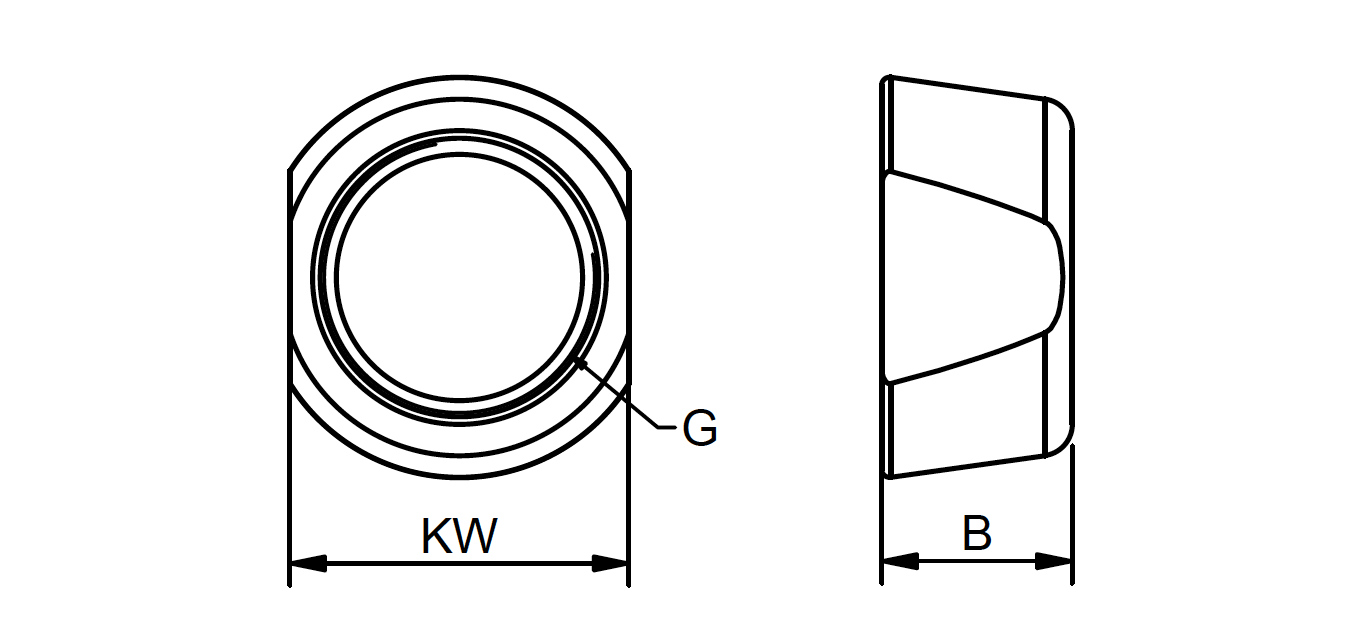

Technical drawing
Datatable
